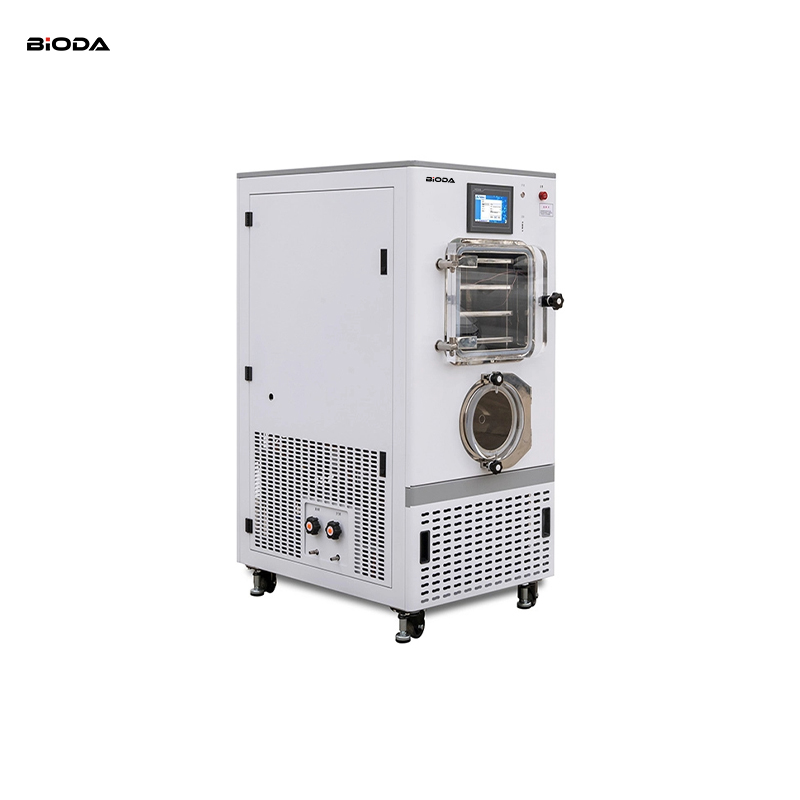

SY-20F R&D-Standard Freeze Dryer
Product Advantage
1. Meeting Special Sample Process Requirements:
In the fields of pharmaceuticals, life sciences, and specialized materials freeze-drying applications, some products have critical temperature values Te, Tm, Tc, Tg1 that are lower, even below the control values of pre-freezing and sublimation in conventional freeze dryers. SONYAN Freeze Dryer achieve breakthroughs in special sample freeze-drying by employing targeted structural design, functional upgrades, and process optimizations at the equipment level.
2. Compliance with Relevant Standards such as GMP:
The entire range of SONYAN Freeze Dryer uses a self-developed and copyright-protected drying machine control system, which offers user-friendliness and usability. The reliable FAD-LAB, FAD-EMB, FD-PILOT, LYO-CONTROL control systems, along with the LYO-MEGA remote control system, ensure smooth freeze-drying process compliance with requirements such as the U.S. FDA CFR PART 11 and updated GMP standards.
3. Professional Tray and Cold Trap Technology Production for Uniform Drying:
SONYAN Freeze Dryer employ specialized tray and cold trap technology production to ensure uniform drying results. The stable control system and user-friendly operation facilitate process optimization and drying effect verification.
4. Heating and Cooling Rates Up to 1°C/minute, Matching Industrial Freeze Dryers.
5. The topmost tray functions as a thermal radiation layer to ensure uniform heating across all trays.
6. Contact materials with the samples are made from high-quality stainless steel, and internal components are easy to clean.
7. Utilizes the same PLC system as industrial freeze dryers, offering ample control for various processes and ensuring process repeatability.
8. Capability to design, load, and store process programs, real-time recording of freeze-drying processes, generating freeze-drying curves, reports, historical records, alarms, and more.
Technical Parameters
Model | SY-20F Standard | SY-30F Standard | SY-50F Standard | SY-100F Standard | |
Freeze Drying Area | ㎡ | 0.3 | 0.4 | 0.7 | 1.03 |
Cold Trap Temperature | ℃ | ＜-75 (no-load) | |||
Vacuum Level | Pa | ≤1 (no-load) | |||
Shelf Temperature Range | ℃ | -55-+70 (no-load) | |||
Maximum ice capacity | kg/24h | ≥6 | ≥8 | ≥10 | ≥15 |
Number of Shelf Layers | pcs | 3+1 | 4+1 | 4+1 | 6+1 |
Material Tray | mm | 400×270 | 340×300 | 480×360 | 480×360 |
Shelf Spacing | mm | 70 | 50 | 50/ Optional 70 | 70 |
Overall Power | kW | 3 | 4.5 | 5.5 | 6.5 |
Weight | kg | 300 | 400 | 600 | 700 |
Dimensions | mm | 1033×781×1580 | 825×928×1366 | 823×1008×1420 | 876×1190×1727 |
Loadable Materials | L/kg | 3 | 4 | 7 | 10 |
Defrost Mode | - | Electric Defrost | Natural Defrost | Natural Defrost with Optional Electric Defrost | Electric Defrost |
Safety Devices | - | Audible Alarm, Emergency Stop Switch, Overpressure Protection | |||
Power Supply | - | Single-phase 3-wire, 220 volts | Single-phase 3-wire, 220 volts | Single-phase 3-wire, 220 volts Three-phase 5-wire, 380 volts | Three-phase 5-wire, 380 volts |
Optional features:
· Vacuum level control
· Eutectic point testing
· Chamber isolation valve
· Remote control via PC or mobile app
· Imported vacuum pumps
· Anti-oil backflow solenoid valve
· Oil mist filter
Product Uses
Freeze-drying process optimization is suitable for various industries, including biotechnology, pharmaceuticals, materials science, chemical engineering, and food production.
Product Operate Guide
The control system of this machine features a large touchscreen, providing convenient, straightforward operation with powerful functionality. Each screen displays a wealth of data in an intuitive and clear manner. It can store hundreds of temperature control programs, with each program allowing for the configuration of up to 36 segments.
Advanced fuzzy PID control algorithms ensure precise and stable temperature control. During automatic temperature control, you can modify temperature parameters and skip segments as needed, offering flexibility in operation. The system controls shelf temperatures according to pre-set parameters. Multiple stability measures are incorporated into the system, ensuring stable and reliable operation.
