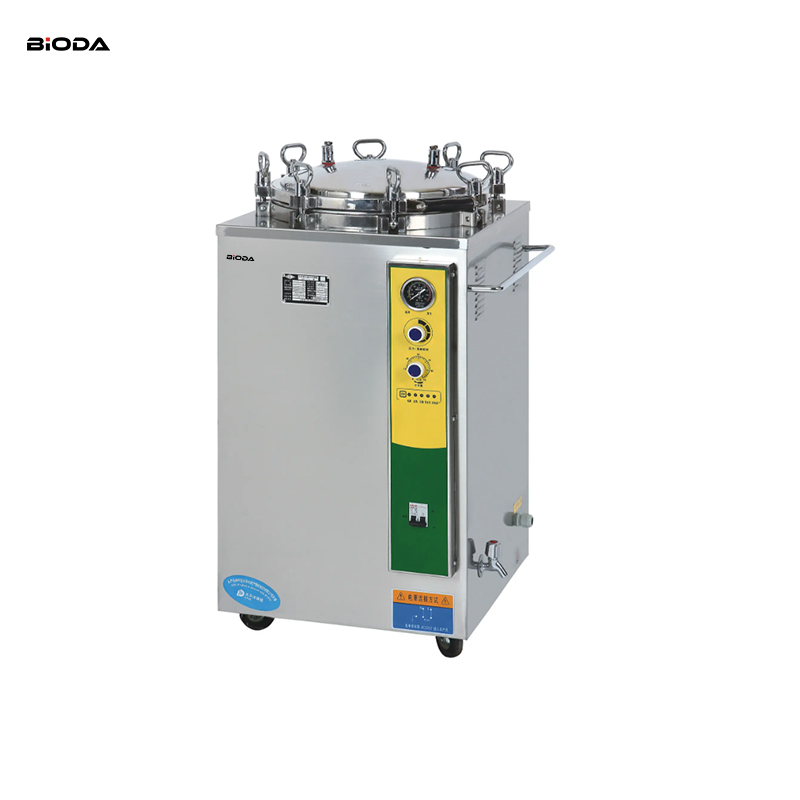

LS-LJ Series Vertical Pressure Steam Sterilizer
Application
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for he sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc.
Characteristics
◇ Indicator light indicates working state.
◇ Automatically shut off with beep reminding after sterilization.
◇Over-temperature & over-pressure auto-protection device.
◇ Fully stainless steel structure.
◇ Double scale indication pressure gauge.
◇ Easy to operate, safe and reliable.
◇ Safe protection of water lacking.
◇ With two stainless steel sterilizing baskets.
◇ With the below exhaust structure, which is convenient to exhaust the cold air.
Technical parameters
Model | LS-35LJ | LS-50LJ | LS-75LJ | LS-100LJ |
Chamber volume | 35L(φ318×450) mm | 50L( φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
Working pressure | 0.22MPa | |||
Working temperature | 134ºC | |||
Max working pressure | 0.23 Mpa | |||
Heat average | ≤±1ºC | |||
Timer scope | 0~60min | |||
Temperature scope | 105~134ºC | |||
Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 480×460×850(mm) | 520×520×980(mm) | 560×560×980(mm) | 590×590×1080(mm) |
Transport dimension | 570×550×970(mm) | 590×590×1110(mm) | 650×630×1150(mm) | 680×650×1220(mm) |
G.W/N.W | 56Kg/42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg |
