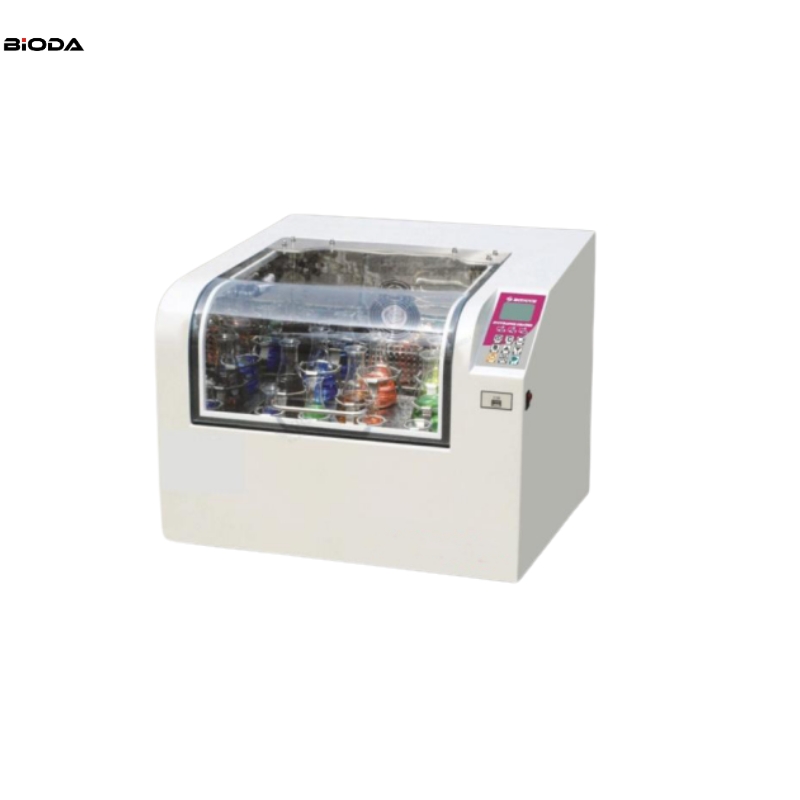

HNY-200B desktop 4°Cto 65°C refrigerated incubator shaker
Features
Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.
Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.
Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.
High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM
High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,
Unique drive system. It makes the machine running smoothly, stably, durably and reliably.
Open door protection. When the door opens, the machine stops running to protect the safety of the operator.
LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.
Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.
Function of encrypted and locked operating parameters. It can avoid human errors.
Continuously running or timing. Shakers can display the set time and time remaining
Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
Technical parameters:
Model | HNY-200B |
Specifications | |
Control model | P.I.D microprocessor chip |
Convection model | Forced convection |
Shake model | Convolution |
Control system | Multiple Programmable mode(temp,speed,time) |
Cyclotron frequency range(rpm) | 0;20-450(To do static culture) |
Cyclotron frequency sensitivity(rpm) | ±1 |
Orbit Diameter(mm) | Φ26 |
Maximum capacity | 100ML×23 OR 250ML×16 OR 500ML×9 OR 1000ML×6 OR 2000ml×4 |
Standard capacity | 500ml×3 250ml×4 100ml×5 50ml×5 |
Size of platform(mm) | 450×410 |
Timing range(h) | 0-9999h/min(Any time,continuous duty) |
Temperature range(℃） | 4°Cto 65°C（20°C） |
Temperature regulate sensitivity(℃） | ±0.1 |
Temperature uniformity(℃） | ±0.5（37℃） |
Temperature uniformity(℃） | ≤0.1（37℃） |
Number of platform | One |
Outside dimension（W*D*H)（mm） | 750×710×520 |
Capacity（L) | 70 |
Power（W) | 650 |
Power supply | AC220±10% 50HZ |
Net weight(kg) | 110 |
Gross weight(kg) | 140 |
Other functions | Ultra-low speed start, Adjustable start speed，Overspeed auto-prtection，Automatically stop when opening the door，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery，Refrigeration unit overload protection，Sound and light alarm when upper and lower overtemperature |
