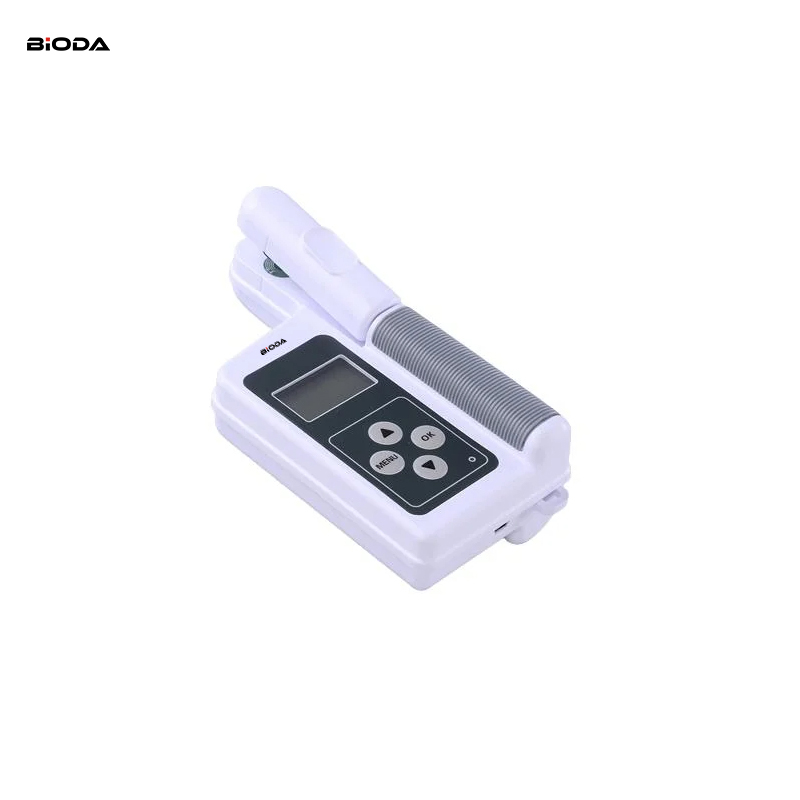

Portable Plant Nutrition Tester TYS-4N
Portable Plant Nutrition Tester TYS-4N
The plant nutrient analyzer saves three parameters (chlorophyll, nitrogen content, and leaf temperature) at the same time.
Plant chlorophyll, nitrogen content, and leaf temperature are important nutrients. They're an important basis for plant
fertilization and irrigation. Use near-infrared spectroscopy, to test leaf chlorophyll, nitrogen, and leaf temperature by near‐infrared spectrum nondestructive testing. Can nondestructive test three plant nutrition and growth physiology information.
Features:
Be able to save chlorophyll, nitrogen, and leaf temperature at the same time, easy to draw a graph of plant nutrients, leaf temperature, etc. Provide for plant precision irrigation and fertilization.
2. Nondestructivetest plant quickly, not to affect plant growth.
3. Rapiddetermination: Test plant chlorophyll, nitrogen, and leaf temperature at the same time.
4. Manual measurement
5. View past stored data, and show three parameters at the same
6. The computer can transfer wired or wireless data so as to manage and
7. Easy to store data, directly show stored Show low power consumption.
Technical parameters:
Model | TYS-4N |
Testing objects | nitrogen, chlorophyll, leaf temperature, and leaf humidity(-4N). |
Chlorophyll range | 0.0‐99.9SPAD |
Nitrogen range | 0.0‐99.9mg/g |
Leaf humidity | 0.0‐99.9RH% |
Leaf temperature | ‐10‐99.9°C |
Testing area | 2mm*2mm |
Testing interval | less than 3sec |
Stored data capacity | 999 groups |
Power supply | 4.2V 2000mah Recharge Li‐ion battery |
Chlorophyll accuracy | ±1SPAD |
Nitrogen accuracy | ±5% |
Leaf humidity accuracy | ± 0.5% |
Leaf temperature accuracy | ± 0.5°C |
