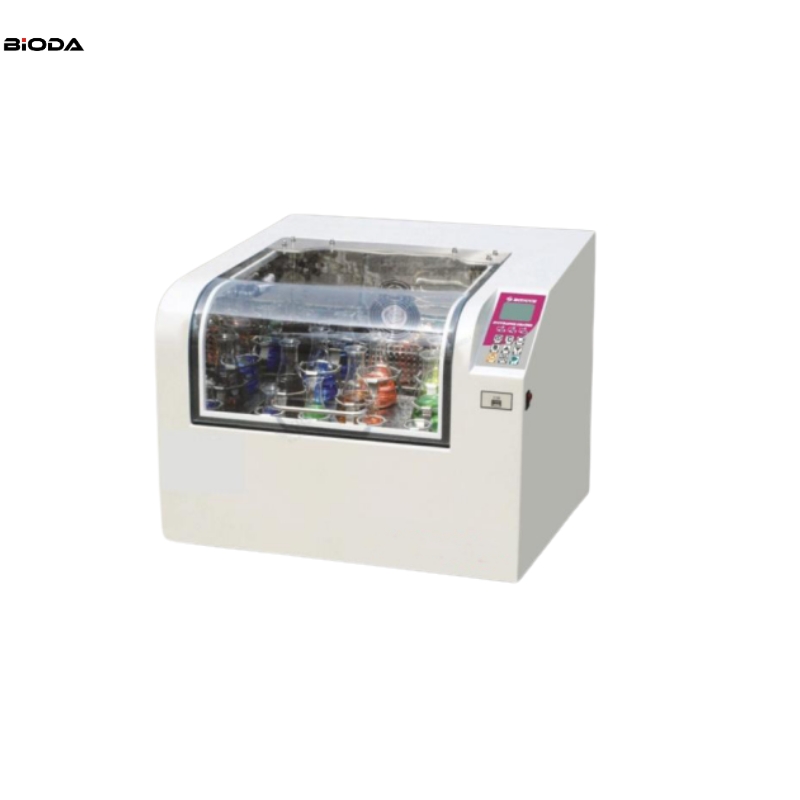

HNY-200F Orbital Incubator Shaker
Features
Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.
Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.
Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.
High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM
High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,
Unique drive system. It makes the machine running smoothly, stably, durably and reliably.
Open door protection. When the door opens, the machine stops running to protect the safety of the operator.
LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.
Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.
Function of encrypted and locked operating parameters. It can avoid human errors.
Continuously running or timing. Shakers can display the set time and time remaining
Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
Clock and date can be displayed (touch screen only).
Technical parameters:
型号（Model） | HNY-200F |
技术指标（Specifications） | |
控制方式Control model | P.I.D microprocessor chip |
对流方式Convection model | 强制对流Forced convection |
振荡方式Shake model | 往复Reciprocate |
显示方式Display | LCD liquid-crystal display |
控制系统Control system | Multiple Programmable mode(temp,speed,time) |
回旋频率范围 Cyclotron frequency range(rpm) | 0;20-260(To do static culture) |
回旋频率精度Cyclotron frequency sensitivity(rpm) | ±1 |
摇板摆振幅度Orbit Diameter(mm) | 0-50 |
最大配置Maximum capacity | 100ML×23 OR 250ML×16 OR 500ML×9 OR 1000ML×6 OR 2000ml×4 |
标准配置Standard capacity | 500ml×3 250ml×4 100ml×5 50ml×5 |
托盘尺寸Size of platform(mm) | 410×360 |
定时范围Timing range(h) | 0-9999h/min(Any time,continuous duty) |
温控范围Temperature range(℃） | 4°Cto 65°C（ 20°C） |
温控调节精度 Temperature regulate sensitivity(℃） | ±0.1 |
温度均匀度Temperature uniformity(℃） | ±0.5（37℃） |
温度波动度Temperature uniformity(℃） | ≤0.1（37℃） |
托盘数量Number of platform | One |
外型尺寸Outside dimension（W*D*H)（mm） | 750×710×520 |
容积Capacity（L) | 70 |
功率Power（W) | 650 |
电源Power supply | AC220±10% 50HZ |
净重Net weight(kg) | 110 |
毛重Gross weight(kg) | 150 |
附属功能Other functions | Ultra-low speed start, Adjustable start speed，Overspeed auto-prtection，Automatically stop when opening the door，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery，Refrigeration unit overload protection，Sound and light alarm when upper and lower overtemperature |
