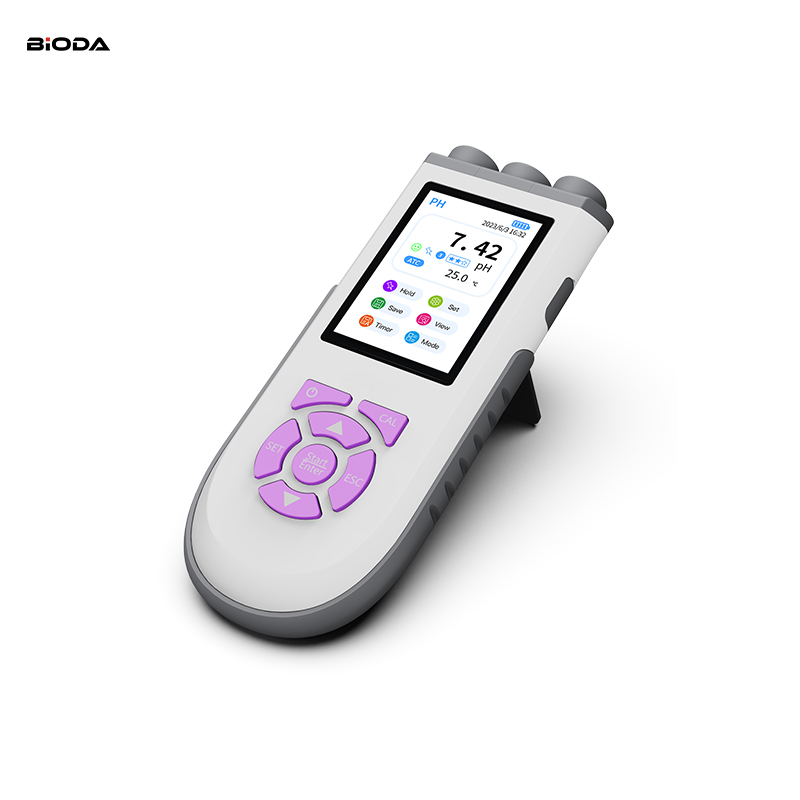

Portable Multiparameter Water Quality Meter 7 in 1 Ph Orp Ec Tds Salinity Do Temp Tester
Product feature
Portable Meters(Multi parameter)
Intelligent operating system upgrade capable of handling a variety of complex analyses, including timed measurements, parameter settings, and data locking, applicable for multiple parameters such as pH, conductivity, and dissolved oxygen.
3.5″TFT Color Display, easy to read
The new UI interface, easy operation
Intelligent function with Auto. timing datalogger, parameter setting, data holder
Data storage up to 3000 groups
Cond mode: Support probe constant calibration, conductivity standard solution calibration
Power supply: rechargeable lithium battery/USB
Charging socket: USB/Type-C, in line with the European new regulations.
Protection class: IP57
PRODUCT PARAMETERS
Parameter | pH/mV.℃ | mV(ORP).℃ | Cond/TDS/Sal./Res.℃ | DO.℃ |
pH Measurement range | (-2.000~20.000) pH |
pH Resolution | 0.1/0.01/0.001 |
pH Accuracy | ±0.002pH ±one digit |
pH Calibration points | 1, 2, -3pts automatic |
pH ATC range | (0.0~100.0) ℃/(32.0~212.0)°F |
ORP Measurement range | (-1999.9~+1999.9) mV |
ORP Resolution | 0.1/1 |
ORP Accuracy | ±0.03%F.S ±one digit |
Conductivity Measurement range | 0~2000.0mS/cm,Auto-ranging:0~19.999μS/cm;20.0~199.9μS/cm;200~1999μS/cm;2.00~19.99mS/cm;20.00~199.9mS/cm;200.0~2000mS/cm(K=10);Match test range:0~200mS/cm;TDS:0~100.0g/L(TDS factor adjustable)Resistivity:5.000Ω·cm~100.0MΩ·cm;Salinity:0~100ppt |
Conductivity Calibration points | one point |
Conductivity Resolution | 0.001/0.01/0.1/1 |
Conductivity ATC range | (0.0~50.0) ℃/(32.0~122.0)°F |
Conductivity Accuracy | ±0.5% F.S ±one digit |
DO Measurement range | (0.00~20.00)mg/L |
DO Accuracy | ±0.30mg/L |
DO saturation | (0.0~200.0)% |
DO Automatic barometric pressure compensation | (0~200.0)kPa |
DO Automatic temperature compensation | (0.0~50.0) ℃/(32.0~122.0)°F |
DO Manual salinity compensation | 0~45ppt |
Temperature Measurement range | (0.0~100.0) ℃/(32.0~212.0)°F |
Temperature Accuracy | ±0.2℃ |
Charging socket | Type-C |
Power supply | Rechargeable lithium battery |
IP Rating | IP57 |
Test kit | Meter; pH probe D201T-H; Cond probe DCON201T, K=1.0; DO probe DDO01-2M-H, 2m cable; pH buffers: pH4.00/7.00/10.01, 50mL each; Cond solutions: 84μS/1413μS/12.88mS/cm, 50mL each; Membrane refill: DDOS-01, 30mL, 1 btl; Caps DDOSC, 3 pcs/group, 1 pkg; Lithium battery (pre-installed); Charging cable: 1 pc; Case: 33.0x27.8x8.2 cm, 1 pc. |
