Soil Tensiometer TEN-15/30/45/50/60/90/120

Soil Tensiometer TEN-15/30/45/50/60/90/120

A soil tensiometer is a device designed to measure soil water tension, which is the force with which water is held in the soil. This measurement is crucial for understanding soil moisture conditions and optimizing irrigation practices
Send Inquiry

Soil Tensiometer TEN-15/30/45/50/60/90/120

 Soil Testing Instruments.png

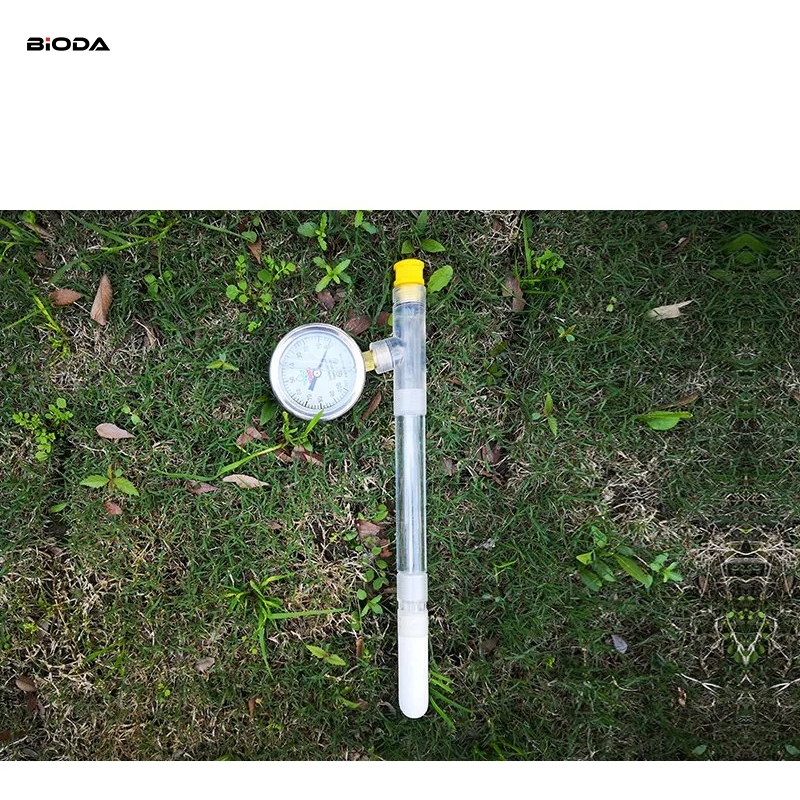

The tensiometer consists of a pressure gauge, a kleenex tube and a ceramic head. When the kleenex tube is filled with water, the ceramic head is wet and prevents outside air from entering the ceramic head. When the water potential of the measured soil and the tensiometer there is a pressure difference, the water in the tensiometer penetrates into the measured soil until it reaches equilibrium, at which time the value shown in the pressure gauge is the soil water potential of the measured soil.

Instrument components: tensiometer tube, pointer-type negative pressure gauge.

Options: It is recommended to use soil auger to pre-drill holes.





Technical parameters

Length can be customized according to customer requirements (standard length refers to the length of the transparent polycarbonate negative pressure tube in the middle section of the tensiometer tube)

TEN-15 (15cm)

TEN-30 (30cm)

TEN-40 (40cm)

TEN-50 (50cm)

TEN-60 (60cm)

TEN-90 (90cm)

TEN-120（120cm)
