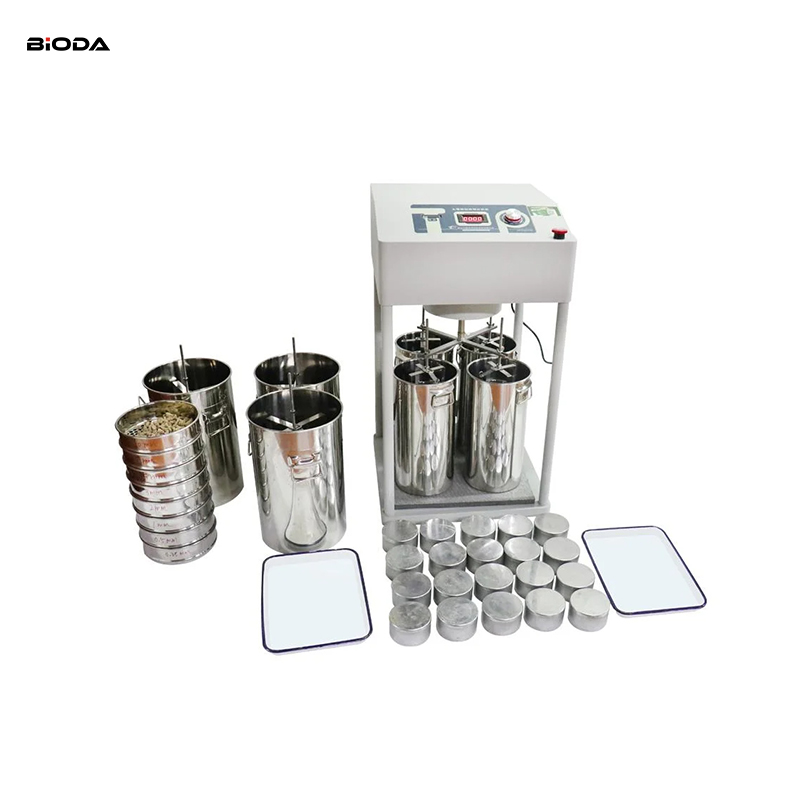

Soil Structure Analyzer TPF-100

Soil Structure Analyzer TPF-100

Soil agglomerate structure analyzer is suitable for soil, environment, ground remote, geology and soil erosion laboratory analysis of agglomerates, can effectively analyze the soil in the soil of calcium, magnesium, organic matter, mycelium and other cemented soil particles, to ensure that the analysis of the original structure is still maintained after the analysis of the instrument performance is stable, low failure rate, no noise, can be adjusted speed, with a timer setup and other functions.

Agglomerate structure is the basis of fertility, the relationship between the agglomerate structure and soil fertility is mainly manifested in the regulation of soil moisture and air contradictions; coordination of soil nutrient depletion and accumulation of contradictions; stabilization of soil temperature; improve soil tillage, and is conducive to the extension of the crop root system.

TPF-100 Soil Agglomerate Structure Analyzer is low noise, adjustable speed; with timer setting function, digital tube display of running time, stepless speed regulation function; at the same time, it has emergency pause switch, which is convenient for abnormalities in the test to cut off the power in time and stop working. With leakage protection function.

Features:

1, in full compliance with agricultural standards (NY/T 1121.19-2008) and forestry standards (LY/T 1227-1999) design.

2、It can effectively analyze the soil particles cemented up with calcium, magnesium, organic matter and mycelium in the soil to ensure that the original structure is still maintained after analysis.

3、Control system adopts key to adjust frequency and knob timing. High-precision digital display of time and frequency, accurate data, fast operation.

4、System performance is stable, safe and reliable, with leakage protection design, with grounding protection line design, emergency stop button design.

5, low energy consumption, low noise, in line with environmental protection standards.

TPF-100 Technical parameters:

1, host size: length 635mm * width 635mm * height 895mm

2, running mode: vertical movement, stroke 50mm, to ensure that the soil particles are detected according to the standard specifications of the soil sieve samples of standard samples.

3、Timing range: 0~60 minutes arbitrary adjustment

4、Motor speed: 1350 rpm

5, Oscillation frequency: 4-45 times / min

6、Operating voltage: 220V, 50HZ

7、Maximum power: 120W

8、Screen specifications (optional)

   Specification 1 (diameter 10cm): 5mm, 3mm, 2mm, 1mm, 0.5mm, 0.25mm

   Specification 2 (diameter 20cm): 10mm, 7mm, 5mm, 3mm, 2mm, 1mm, 0.5mm, 0.25mm

9, Material: stainless steel

10、Oscillating frame: 4 to support the simultaneous determination of 4 samples

11, sieve frame: 4 stainless steel
