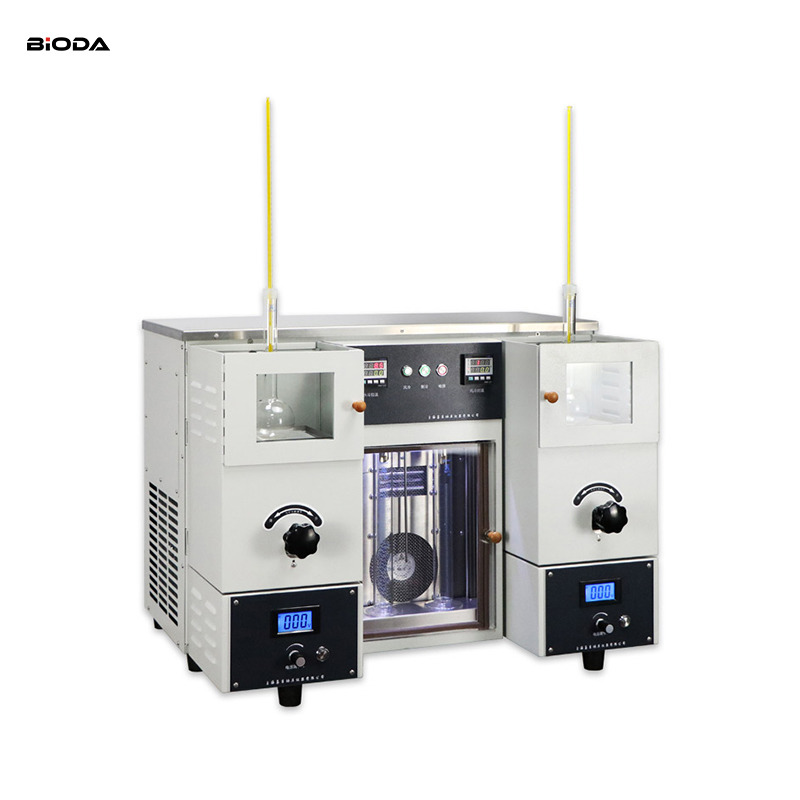

BYD-6536B Petroleum Product Distillation Tester
Summary I. 1.It adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test. 2. The height of the flask is adjusted by the lifting device, and the high temperature resistant and heat insulation glass observation window is equipped to observe the whole test process. 3. Condensing tube water bath has the function of temperature control, which can be set and adjusted in the range of 0 ℃ ~ 60 ℃. The temperature in the bath is uniform and meets the requirements of the test. 4.The instrument adopts advanced PID self-tuning temperature control system, with high temperature control precision (up to ± 5 ℃), and is stable. I. 1.Power supply: AC(220±10%)V, 50Hz 3.Cool mode: compressor refrigeration; 4.Furnace heating power: 1300W*2; 5.Receiving cylinder: 100ml, division value is 1ml. (1) Range: 0 ℃ to 60 ℃ (2) Accuracy: ±0.5℃ (3) Display: LED 10.Receiving chamber: (1)Range：（0-room temp.） (2)Display: LED 11.Suitable environment: Ambient temperature: 15℃～28℃ 12. Dimension: 700mm×520mm×580mm 13. Net weight: 60kg.
The instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
I. Main technical features
II. Main technical specifications
2.Total power consumption: ≤3500W;
6.Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86
7.Thermometer:(-2~300)℃ and (-2~400)℃. Division value 1℃.
8.Flask support board: SiC, bore diameter is: φ32mm, φ38mm, φ50mm.
9.Condenser temperature controlling :
Relative humidity: ≤85%
