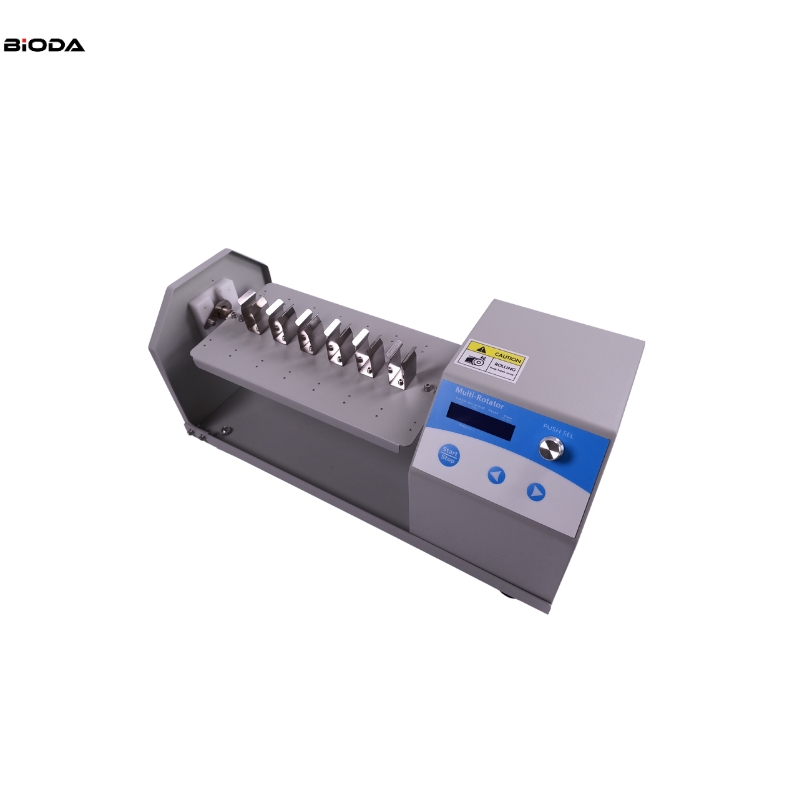

RS100 Multi-Rotator

RS100 Multi-Rotator

Multi-Rotator is a high speed shaker with brushless DC motor and microprocessor controlled technique. Mix and culture many kinds of centrifuge tubes, by changing different platforms. It can be applicable in different laboratories: biotechnology, microbiol
Send Inquiry

Multi-Rotator——RS100



Description:

Multi-Rotator is a high speed shaker with brushless DC motor and microprocessor controlled technique. Mix and culture many kinds of centrifuge tubes, by changing different platforms. It can be applicable in different laboratories: biotechnology, microbiology and medicine analysis, etc.



Features

LCD displays time and shaking speed.

Easy to operate with touch knob.

Setup the time of 1min~99h59min. Beep alarms when operation ends.

Different platforms can be chosen for variety demands.

Gentle and reliable shaking with brushless DC motor.

Programmable motions include: 1) orbital rotational motion, 2) reciprocal motion, 3) pause. Not only run in one particular type, but also alternate motions of different types cyclically.

Parameters:

Model

RS100

Shaking speed

10~100rpm

Timing range

1min-99h59min

Time for orbital rotational and reciprocal motions

1-250s

Time for pause

1-5s

Max. load

6kg

Power

25W

Voltage

AC110~240V, 50/60Hz

Dimension(mm)

485x200x226

Weight(kg)

5.90



Optional Platforms:

Type

Description

PRS-01

Two sides can accommodate 44 tubes of 1.5ml vertically

PRS-02

Two sides can accommodate 40 tubes of 1.5ml horizontally

PRS-03

Two sides can accommodate 32 tubes of 5ml vertically

PRS-04

Two sides can accommodate 40 tubes of 5ml horizontally

PRS-05

Two sides can accommodate 12 tubes of 10ml/15ml vertically

PRS-06

Two sides can accommodate 16 tubes of 10ml/15ml horizontally

PRS-07

Two sides can accommodate 12 tubes of 50ml vertically

PRS-08

Two sides can accommodate 16 tubes of 50ml horizontally
