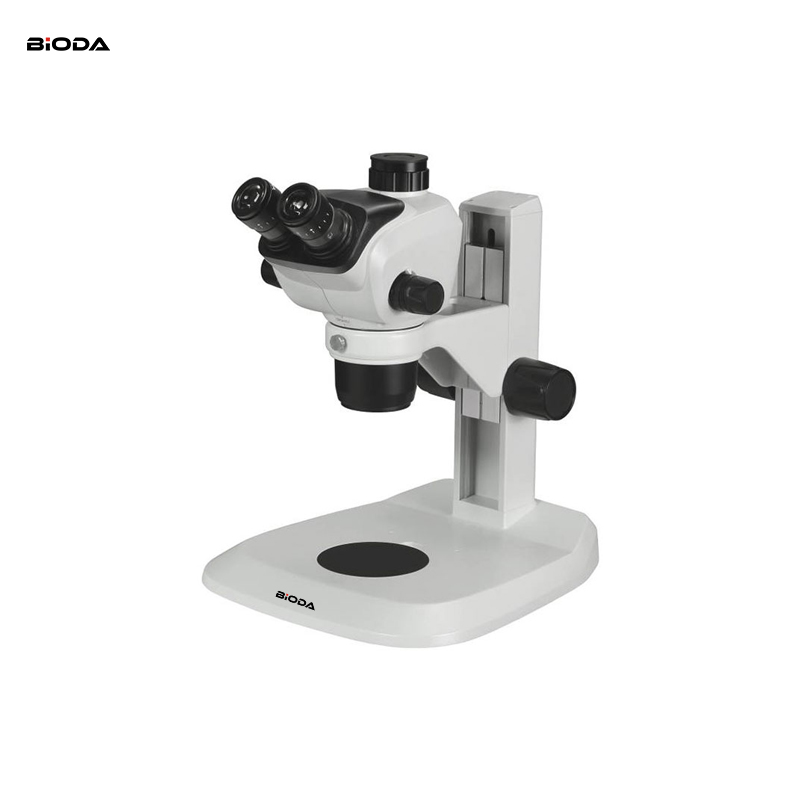

Digital Binocular Electronics Circuit Board Pcb Inspection Trinocular Dissecting Zoom Stereo Microscope
Outstanding Ergonomic Design
SZ680/810 35°viewing angle, SZ650 40°viewing angle, suitable for long-term sitting observation.
330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
Top Optical & Mechanical Design
Greenough optical system, built-in rotating shaft zoom system.
No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
(patent number: 201320807246.0)
Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration.
Excellent Technology And Quality
High resolution, large depth of field, excellent color restoration and contrast.
Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
International Level Appearance Design
Elegant shape , high-end and integrated appearance design， comfortable operation.
Various Accessories,Complete Function.

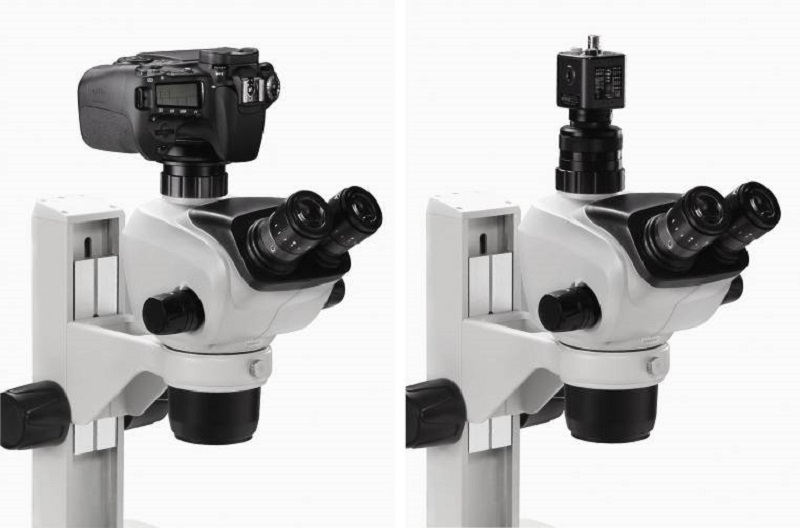

Different video output connectors, built-in digital image model.
Illumination optional: LED, halogen lamp, cold light source etc. (100V-240V wide voltage input).
Various professional stands and operating attachments.

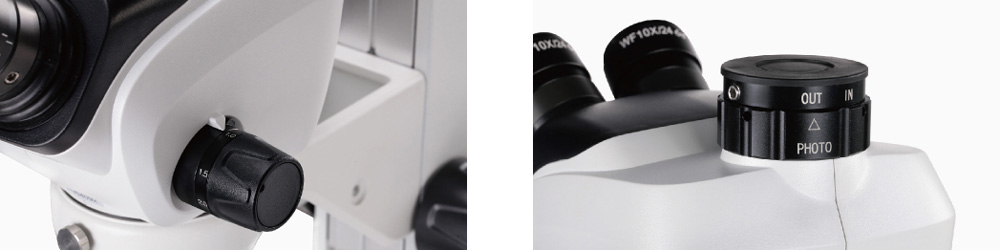

User can limit the zoom range as per self-choice. ● Rotating switching to video output and input, 100% light distribution.

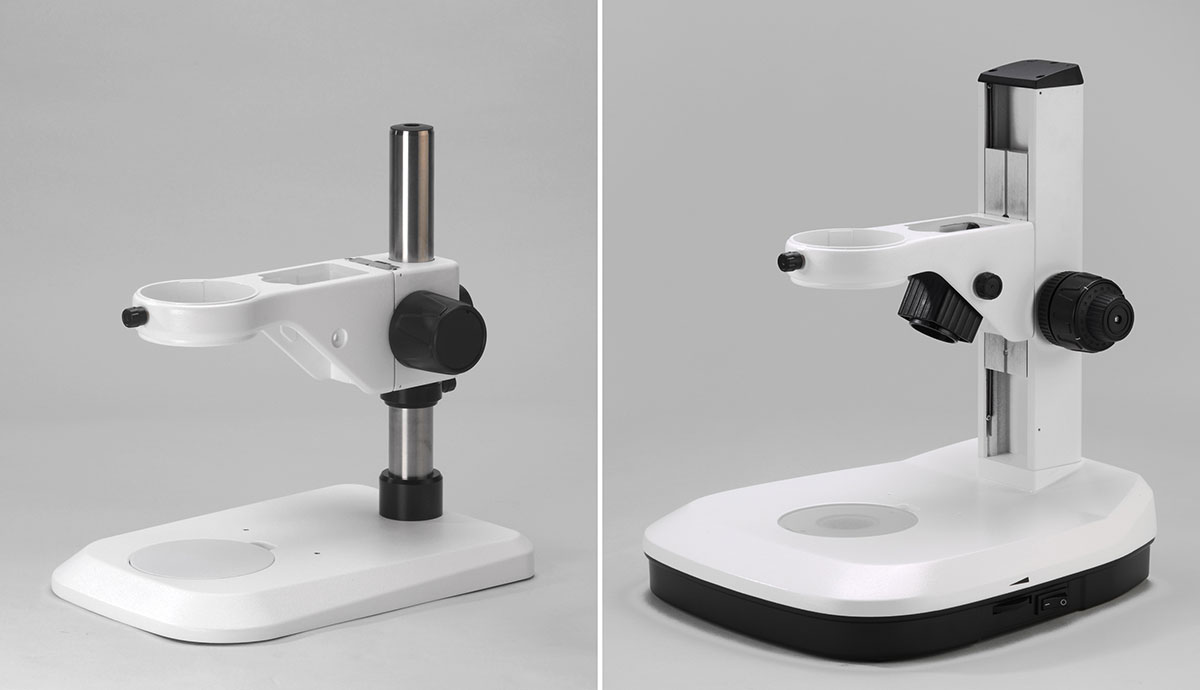

● Pillar Stand ● Focusing Arm Stand
Main Technical Specification
Model | SZ650 | SZ680 | SZ810 |
Objectives Zoom Range | 0.7X-4.5X | 0.68X-4.7X | 0.65X-5.3X |
Zoom Ratio | 1 : 6.5 | 1 : 6.8 | 1 : 8.1 |
Field Diameter (mm) | Φ22 | Φ23 | Φ24 |
Working Distance (mm) | 110 | 110 | 110 |
Stereo Angle ( °) | 12 | 12 | 12 |
Viewing Angle ( °) | 40 | 35 | 35 |
Interpupillary Adjustable Distance (mm) | 50-75 | 50-75 | 50-75 |
Video Output Distribution | NO | 100%（0:100 standard） | |
70:30 (optional) 70% for eyepiece, 30% for photography | |||
Guide Rail Stand Focusing Distance (mm) | 80 | ||
Pillar Stand Focusing Distance (mm) | 115 | ||
SZ650 Series Objective & Eyepiece Parameter List (0.7×-4.5×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ22mm | Magnification | 3.5～22.5 | 7～45 | 14～90 |
Field dia. (mm) | 62.9～9.8 | 31.43～4.89 | 15.71～2.44 | |
15XEyepiece/Φ16mm | Magnification | 5.25～33.75 | 10.5～67.5 | 21～135 |
Field dia. (mm) | 45.71～7.11 | 22.86～3.56 | 11.43～1.78 | |
20XEyepiece/Φ12mm | Magnification | 7～45 | 14～90 | 28～180 |
Field dia.(mm) | 34.28～5.33 | 17.14～2.67 | 8.57～1.33 | |
SZ680 Series Objective & Eyepiece Parameter List (0.68×-4.7×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ23mm | Magnification | 3.4～23.5 | 6.8～47 | 13.6～94 |
Field dia. (mm) | 67.65～9.79 | 33.82～4.89 | 16.91～2.46 | |
15XEyepiece/Φ16mm | Magnification | 5.1～35.25 | 10.2～70.5 | 20.4～141 |
Field dia. (mm) | 47.06～6.81 | 23.53～3.40 | 11.76～1.70 | |
20XEyepiece/Φ12mm | Magnification | 6.8～47 | 13.6～94 | 27.2～188 |
Field dia.(mm) | 35.294～5.11 | 17.65～2.55 | 8.82～1.28 | |
SZ810 Series Objective & Eyepiece Parameter List (0.65×-5.3×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ24mm | Magnification | 3.3～25.5 | 6.6～51 | 13.2～102 |
Field dia. (mm) | 72.73～9.41 | 36.36～4.71 | 18.18～2.35 | |
15XEyepiece/Φ16mm | Magnification | 4.95～38.25 | 9.9～76.5 | 19.8～153 |
Field dia. (mm) | 48.48～6.27 | 24.24～3.14 | 12.12～1.57 | |
20XEyepiece/Φ12mm | Magnification | 6.6～51 | 13.2～102 | 26.4～204 |
Field dia. (mm) | 39.64～4.71 | 18.18～2.35 | 9.09～1.18 | |

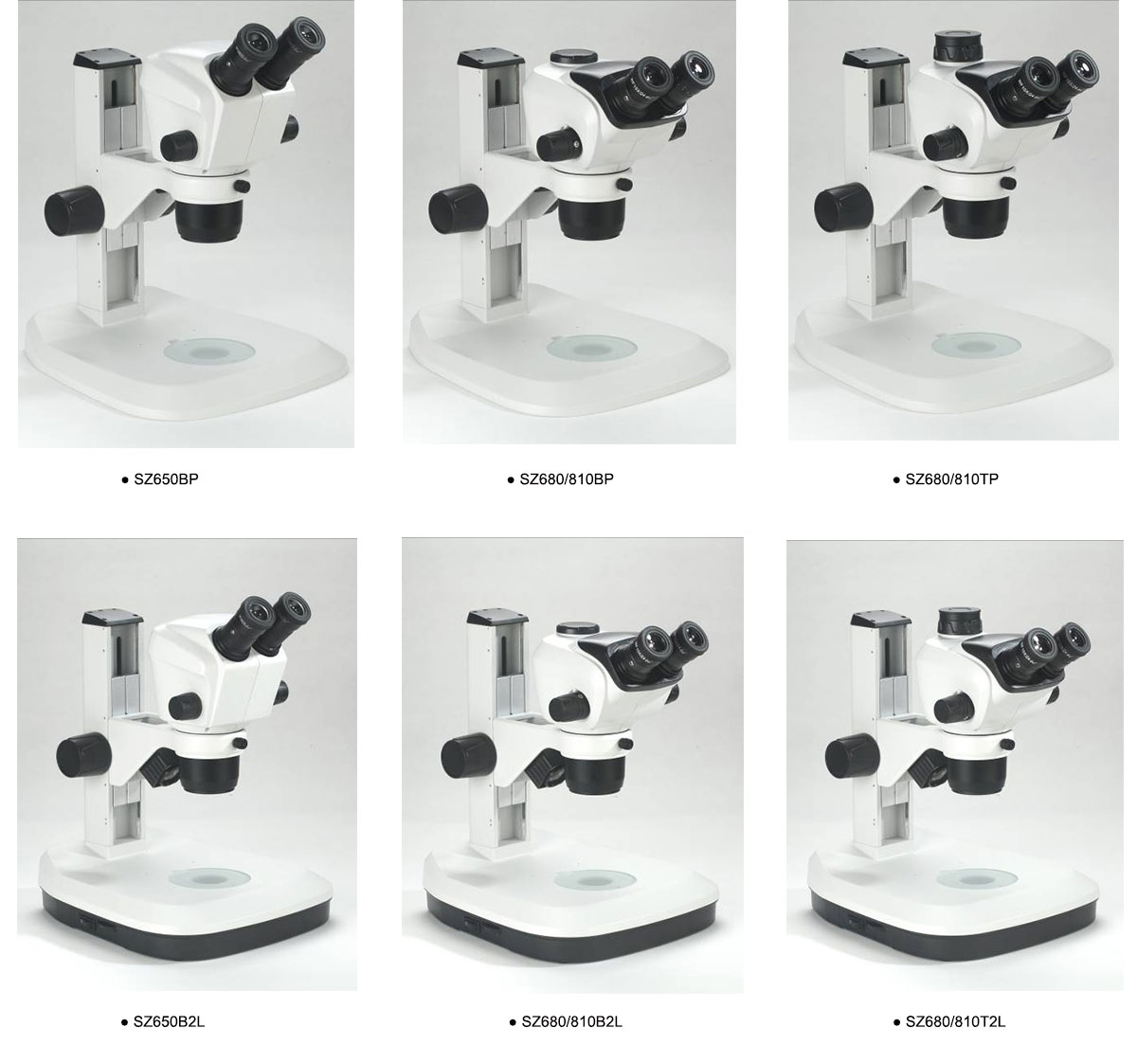

SZ650/680/810 Series Zoom Stereo Microscope Outfit
Items | SZ650BP | SZ650B2L | SZ680BP | SZ680B2L | SZ810BP | SZ810B2L | |
Main Body | Binocular | ● | ● | ● | ● | ● | ● |
Trinocular | ○ | ○ | ○ | ○ | |||
10XEyepiece/Φ22mm | ●● | ●● | |||||
10XEyepiece/Φ23mm | ●● | ●● | |||||
10XEyepiece/Φ24mm | ●● | ●● | |||||
15XEyepiece/Φ16 mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
20XEyepiece/Φ12mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
0.5X/0.75X/2X Objective | ○ | ○ | ○ | ○ | ○ | ○ | |
Focusing unit | ● | ● | ● | ● | ● | ● | |
No light | ● | ● | ● | ||||
Reflecting 3W LED | ● | ● | ● | ||||
Transmitting 3W LED | ● | ● | ● | ||||
Black & white Plate | ● | ● | ● | ● | ● | ● | |
Glass Plate | ● | ● | ● | ||||
Arm stand | ● | ● | ● | ● | ● | ● | |
Pillar stand | ○ | ○ | ○ | ○ | ○ | ○ | |
Focusing Arm stand | ○ | ○ | ○ | ○ | ○ | ○ | |
Base (330×300mm) | ● | ● | ● | ● | ● | ● | |
C-mount 0.5X，0.7X，1X | ○ | ○ | ○ | ○ | |||
Note："●" In Table Is Standard Outfits, "○" Is Optional Accessories.
● SZ650/680/810 Series Zoom Stereo Microscope Size(mm)
