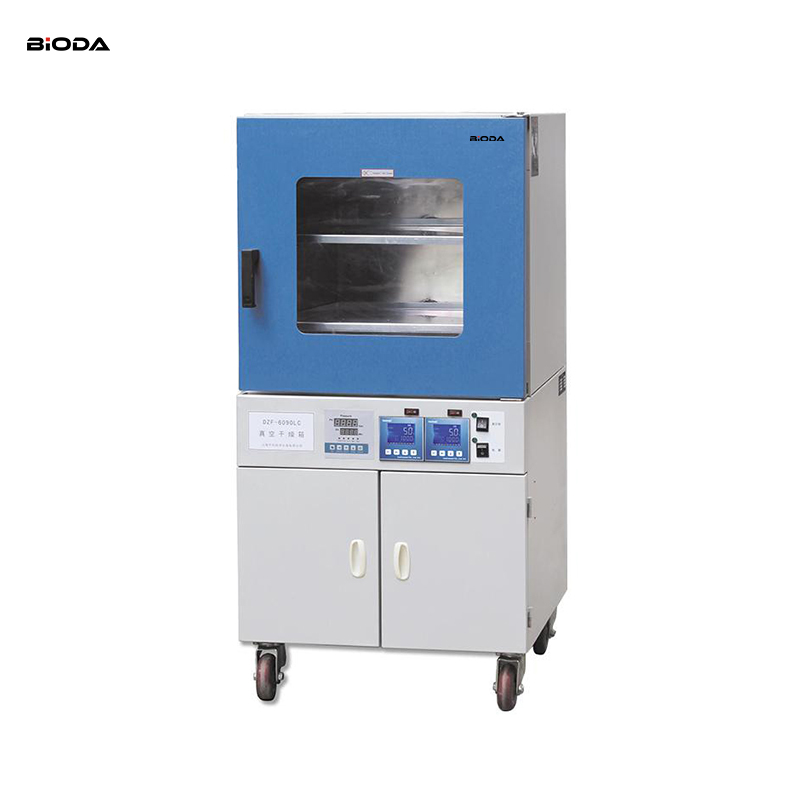

BZF Series Vertical Vacuum Drying Oven
Vertical Vacuum Drying Oven
Overview of use
The vacuum drying oven is specially designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It can be filled with inert gas inside, especially some items with complex compositions, which can also be quickly dried. Widely used in pharmaceutical, electronics and chemical industries.
Features:
1. Digital microcomputer temperature controller with timing function, accurate and reliable temperature control.
2. The cuboid studio maximizes the effective volume.
3. The tempered and bulletproof double-layer glass door allows you to observe objects in the studio clearly at a glance.
4. The tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures high vacuum in the box.
5. The studio is made of stainless steel plate or brushed plate to ensure the product is durable.
Technical parameters:
Model | BZF-6050LC BZF-6053LC BZF-6055LC | BZF-6090 BZF-6090D BZF-6090LC | BZF-6123A BZF-6123LC BZF-6126A BZF-6126LC | BZF-6210 BZF-6210D BZF-6210LC BZF-6216A BZF-6216LC | BZF-6500 BZF-6500D BZF-6500LC BZF-6506A BZF-6506LC | BZF-6930 BZF-6930LC BZF-6936 BZF-6936LC |
Voltage | 220V 50HZ | 380V 50HZ | ||||
Input power | 1800W | 1400W | 2000W | 2200W | 3600W | 5600W |
Temperature control range | +10℃-250℃ | +10℃-200℃ | ||||
Temperature resolution | 0.1℃ | |||||
Constant temperature fluctuation | ±0.1℃ | |||||
Reach vacuum | ＜133pa | |||||
Working temperature | 5℃-40℃ | |||||
Liner size (mm) | 415*370*345 | 450*450*450 | 500*500*500 | 560*600*640 | 630*810*845 | 750*1060*1050 |
Dimensions (mm) | 600*570*1200 | 615*620*1300 | 665*670*1400 | 720*805*1600 | 790*1030*1760 | 1400*1390*2005 |
Shelf | BZF-6050LC: 2 BZF-6053LC: 3 BZF-6055LC: 5 | BZF-6090: 2 BZF-6090D: 2 BZF-6090LC: 2 | BZF-6123A: 3 BZF-6123LC: 3 BZF-6126A: 6 BZF-6126LC: 6 | BZF-6210: 3 BZF-6210D: 3 BZF-6210LC: 3 BZF-6216A: 6 BZF-6216LC: 6 | BZF-6500: 3 BZF-6500D: 3 BZF-6500LC: 3 BZF-6506A: 6 BZF-6506LC: 6 | BZF-6930: 5 BZF-6930LC: 5 BZF-6936: 6 BZF-6936LC: 6 |
Heating method | All sides | Shelf | Shelf / All sides | Shelf / All sides | Shelf / All sides | Shelf / All sides |
Studio material | Stainless steel | |||||
Timing range | 1-9999 minutes | |||||
Note: Series with "D" are intelligent ten-segment programmable LCD controllers. The "LC" series can display and control the vacuum degree. | ||||||
