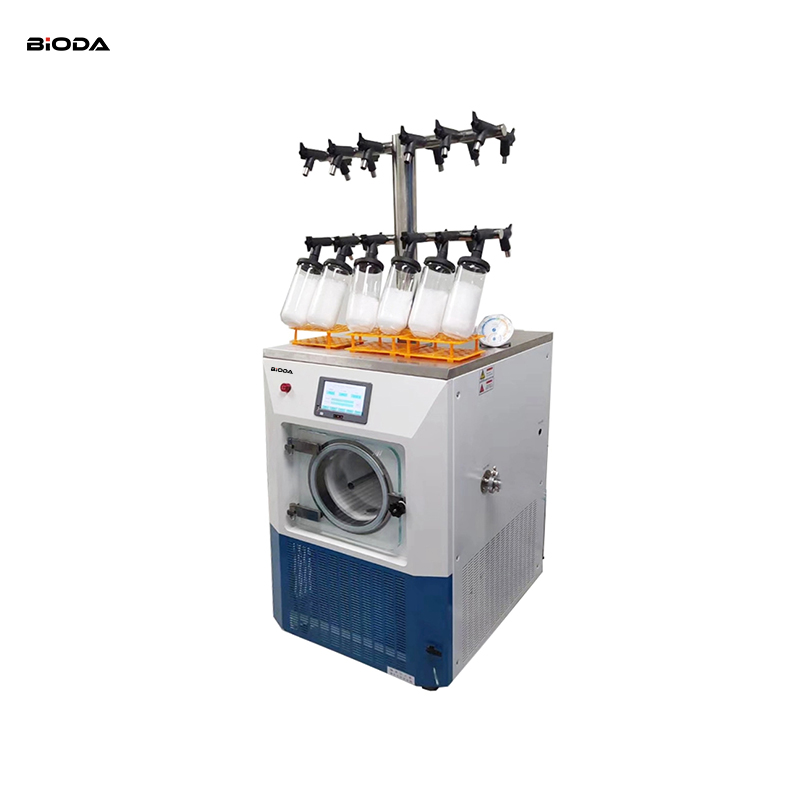

SY-18T Flask Type Freeze Dryer
Product Advantage
pecifically designed for special freeze-drying requirements in biomedicine, peptides, synthesis, etc.
The stainless steel T-shaped frame adopts a special welding process, ensuring no leaks.
The internal pipeline structure of the T-shaped frame can be customized with independent channels.
With a three-way valve device, freeze-drying bottles can be taken off or put on as needed without stopping the machine.
Equipped with a specialized vacuum pump by Song Yuan Huaxing for rapid, stable, and safe operation.
7-inch industrial touchscreen for real-time recording and display of freeze-drying curves and data.
Compliant with FDA and the latest GMP requirements; freeze-drying data can be exported via USB.
Nitrogen filling valve for nitrogen or other inert gases.
Cold trap electric defrosting using a safe voltage significantly improves defrosting efficiency.
Optional compatibility with a multifunctional low-temperature rotary freezing instrument.
Technical Parameters
Minimum cold trap temperature: ≤-85°C (empty load), optional ≤-110°C
Ultimate vacuum: ≤1Pa (empty load)
Number of hanging bottles: 24 / non-standard customization
Flask sizes: Conical flasks - 100/250/500/1000ml, Wide-mouth flasks - 600/1200ml
T-shaped frame material: SUS 304 stainless steel, upgradeable to SUS 316L stainless steel
Defrosting method: Electric defrosting
Product Uses
Suitable for the preservation of bacteria, fungi, peptide samples, and microbial strains. It features a long preservation period, low variation, ease of large-scale preservation, and a wide range of applications.
