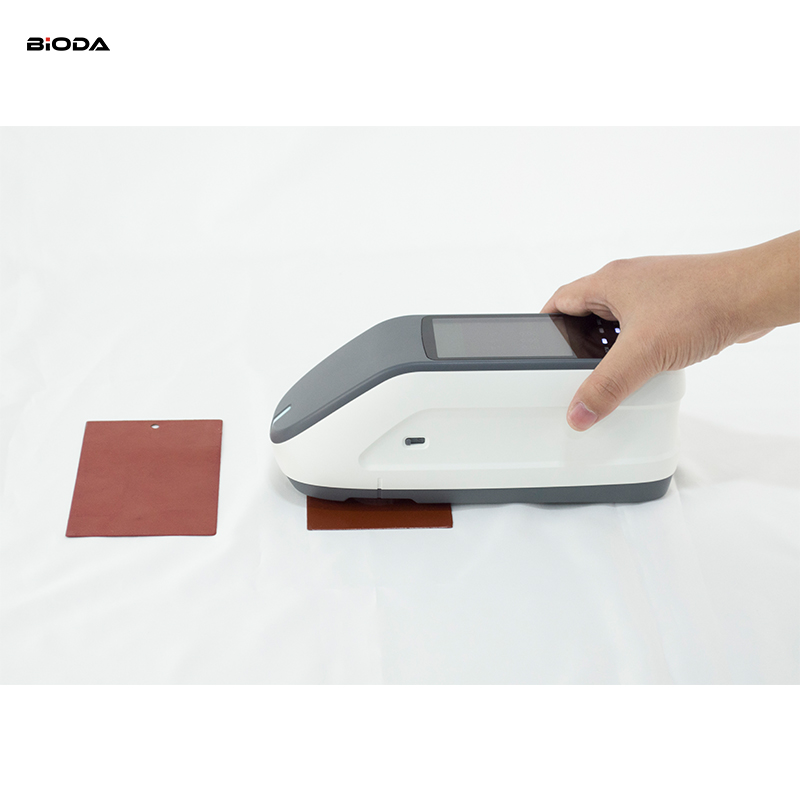

High Precision 360-780nm Lab Plastic Paint Coating Textiles Portable Color Spectrophotometer

n Industry-leading wavelength range:

360-740nm

l The wavelength range of conventional

colorimeter is 400-700nm. In order to achieve moreAdd precise color measurement and extend the wavelength to 360-740nm

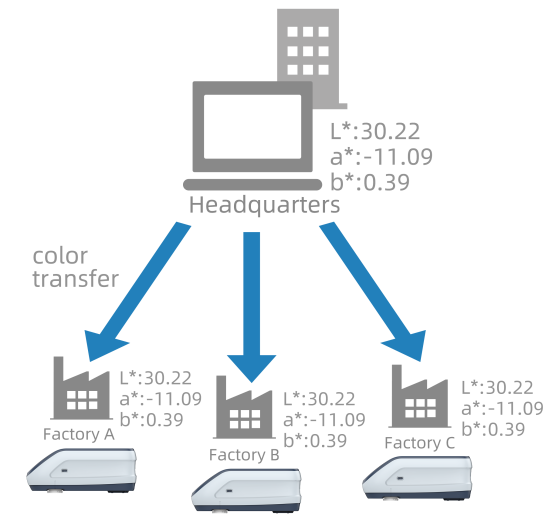

n Outstanding stage-to-stage variation and repeatability

l The inter-stage difference is 0.25, which helps improve

the color quality between manufacturers and suppliers

l The repeatability is 50% higher than the previous

generation, reaching 0.02

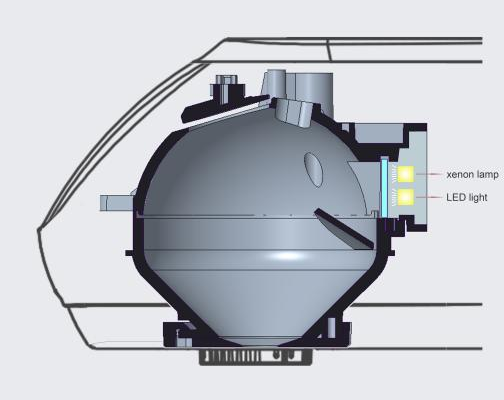

n Dual light source system provides longer service life than expected

l Use xenon lamp and LED to provide sufficient

ultraviolet and visible light at the same time

energy and ensure a measurement life of tens of millions of times

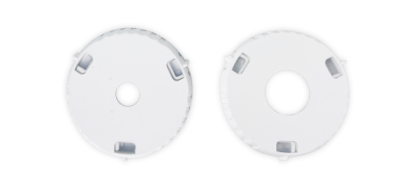

n Provides 2 measuring apertures to easily measure samples of different shapes

l Two hole specifications: 11mm, 6mm diameter,

very small objects or curved surface samples can also be easily measured

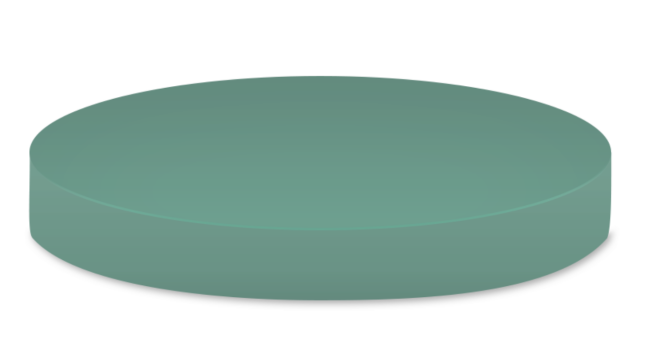

n BCRA green plate wavelength calibration

l Automatic wavelength accuracy calibration using

reference grade BCRA green plate correct to ensure that the instrument is consistent

n Indication accuracy increased by 60%

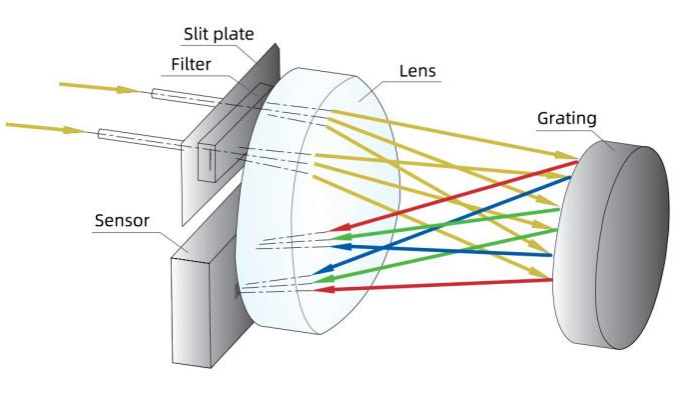

l Using a new generation of array silicon light

sensor, the amount of light input is increased

65%, spectral resolution increased by 39%, compared with the previous generation The indication accuracy is increased by 60%

n Intelligent automatic calibration

l Frequent manual calibration is not required

during use, as long as the calibration On the accurate base, the instrument will automatically adjust according to its own status and environmental factors.Calibrate the overall instrument function and accuracy to ensure that the instrument The device is always in a stable state and ready for use at any

n Intelligent automatic calibration

l Frequent manual calibration is not required

during use, as long as the calibration On the accurate base, the instrument will automatically adjust according to its own status and environmental factors.Calibrate the overall instrument function and accuracy to ensure that the instrument The device is always in a stable state and ready for use at any

Diffuse lighting/8° direction reception, including specular reflected light/removing specular reflected light

After the whiteboard is calibrated, measure the whiteboard 30 times at 5-second intervals. Standard deviation of the MAV caliber measurement results.

The average of the MAV caliber measurement values of 12 color plates in the BCRA series.

Optional accessories
