New 45/0 Illumination Optical UV Automotive Clothing Plastics Coatings Color Multi-angle Spectrophotometer

1. Product characteristics

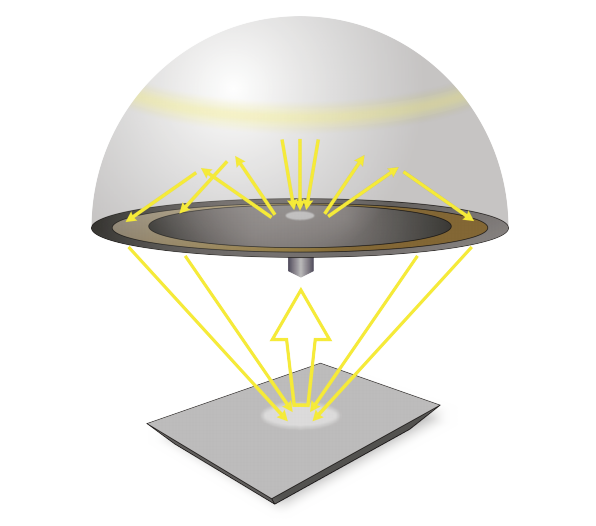

(1) Innovative 45/0 ring lighting optical system, eliminating directional dependence

The innovative 45/0 circular lighting system eliminates the direction dependence and minimizes the impact of the grain. The measurement on the surface of frosted, textured and structured materials brings great advantages, such as automobile interior, clothing, plastics, coatings, etc. The innovative 45/0 ring lighting system is closer to the color visual sense of the measured object.Spectrochromatic

(1) Ultra-high repeatability accuracy：dE*_ab≤0.02

Repeatability accuracy is an important index to describe the accuracy of spectrophotometer. The excellent optoelectronic test system scheme ensures that the repeatability accuracy of DS-700C-3 spectrophotometer reaches a level unmatched by similar products. The repeatability evaluation standard of DS-700C-3 spectrophotometer adopts strict standards, showing excellent repeatability accuracy.

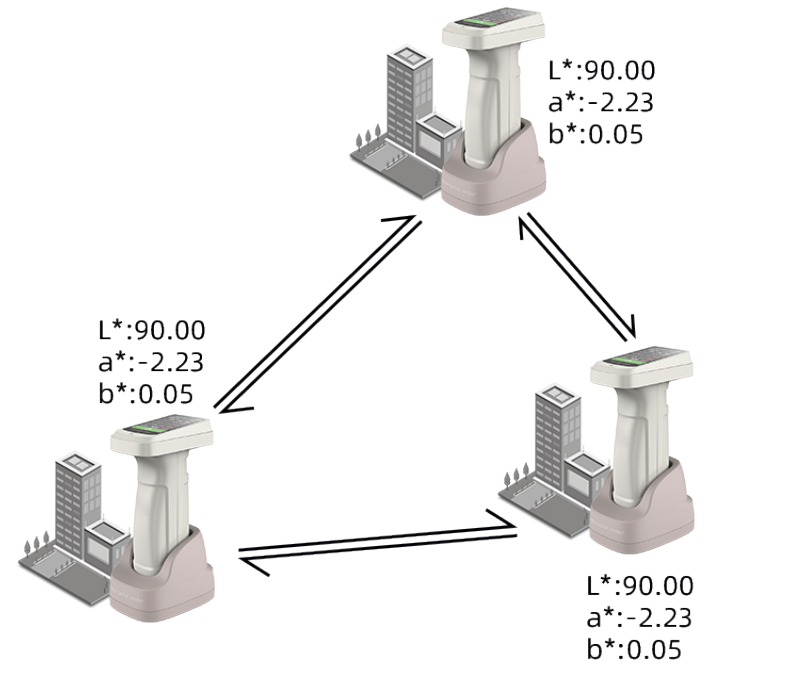

(1) Excellent inter-stage consistency：dE*_ab≤0.2

The excellent technology and process level ensure that DS-700C-3 has excellent consistency between platforms. BCRA series standard color bricks are used for color transfer and color value traceability, which ensures that the same type of instrument still maintains excellent inter-stage difference level between upstream and downstream companies. It ensures the excellent inter-table difference level of the instrument.

(1) The calibration base and zirconium reference with Mohs hardness of 9 are used to calibrate the instrument, which ensures the long-term stability of the instrument

Compared with the existing products, the DS-700C-3 spectrophotometer does not need frequent manual calibration when it is used. As long as it is placed on the calibration base, the instrument will automatically calibrate the overall instrument function and accuracy according to its own state and environmental factors, ensuring that the instrument is always in a stable state and ready for standby.

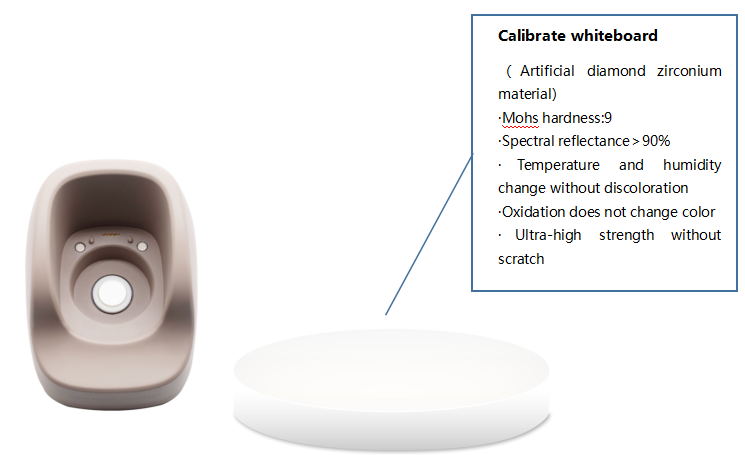

The white board in the calibration base is the working basis of the instrument. Through long-term investment and research, the instrument has integrated zirconium material known as "artificial diamond" as a calibration white board, with a surface Mohs hardness of 9. Because the material itself has the hardness and stability comparable to diamond, it can ensure that the surface of the calibration whiteboard will not be scratched and will not change color with the change of temperature and humidity. Compared with foreign and domestic similar products, ordinary industrial ceramics and even plastics are used as the calibration whiteboard, which further improves the stability and durability and ensures the performance of the instrument.

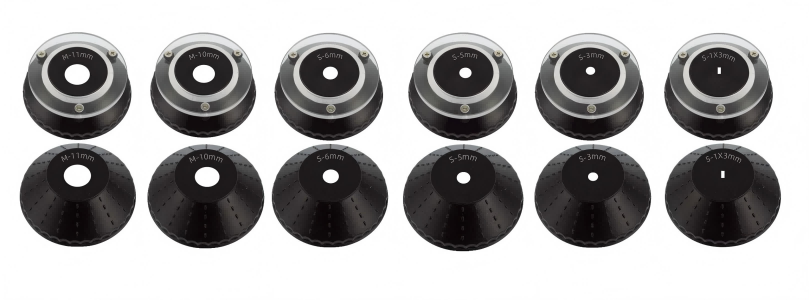

(1) DS-700C-3 supports 12 measurement caliber options

In order to facilitate users to measure samples of different sizes, the DS-700C-3 spectrophotometer supports 12 apertures for customers to use, and is stable: Φ 11mm+ Φ 10mm+ Φ 6mm+ Φ 5mm+ Φ 3mm+ Φ 1 * 3mm, Smart:▽ 11mm+▽ 10mm+▽ 6mm+▽ 5mm+▽ 3mm+▽ 1 * 3mm, which can be flexibly applied to various use and test conditions.

(1) More than 30 measurement parameters and nearly 40 evaluation light sources are available for selection

DS-700C-3 spectrophotometer provides spectral reflectance, CIE-Lab, CIE-LCH, Δ E * ab, covering power, whiteness, yellowness and other 30+measuring indicators; A. B, C, D50, D55, D65 and other nearly 40 evaluation light sources can be selected, covering almost all color measurement indicators and light source types in the industry.

(2) Including UV, can be used for fluorescent color measurement

The DS-700C-3 spectrophotometer supports UV measurement. The instrument can still provide stable and objective reflectance data for color measurement on the surface of materials containing fluorescence.

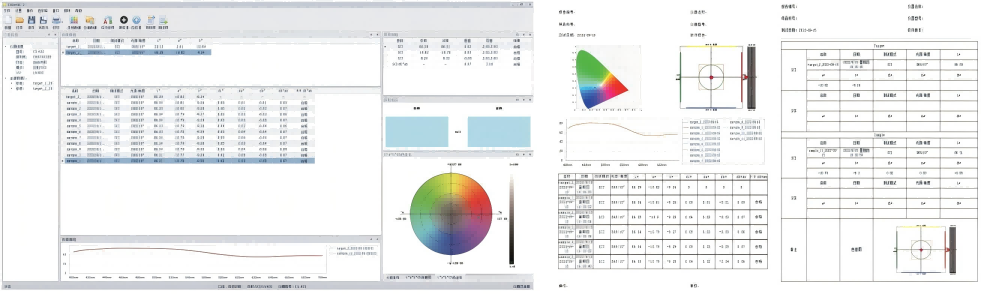

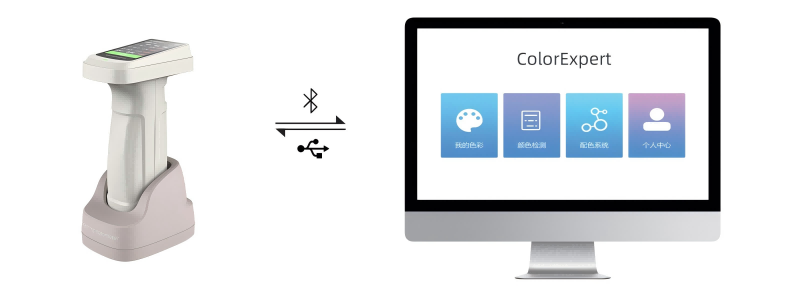

(1) Use the powerful PC-side color management system ColorExpert*

The DS-700C-3 spectrophotometer is attached to the instrument with the Windows color management system ColorExpert, which connects the DS-700C-3 spectrophotometer through Bluetooth or USB cable.

ColorExpert is a full-featured color management software with four functional modules: my color, color detection, color matching system, and personal center.

In the "My Color" function module, users can collect or create their own color library in hundreds of color libraries shared by other users. The computer software and mobile APP can share an account, and the color database data follows the account to synchronize the information between the PC and the mobile terminal.

In the "color detection" function module, users can calibrate, measure and set the spectrophotometer through computer software. Users can use the color in the cloud database as the standard sample to measure the color difference, view the spectrum diagram, color difference diagram, standard sample data, and export the desired data test report.

In the "color matching system" function module, users can be provided with a more convenient and efficient color matching process. After the instrument detects the sample color, the system calculates the formula in the formula center and automatically refines the color, and finally achieves accurate matching. It is suitable for computer automatic color matching applications in paint, coating, printing, textile and other fields.

In the "Personal Center" function module, users can edit their personal information, search or delete the connected instrument information, manage downstream users, and manage the color library shared to downstream users.

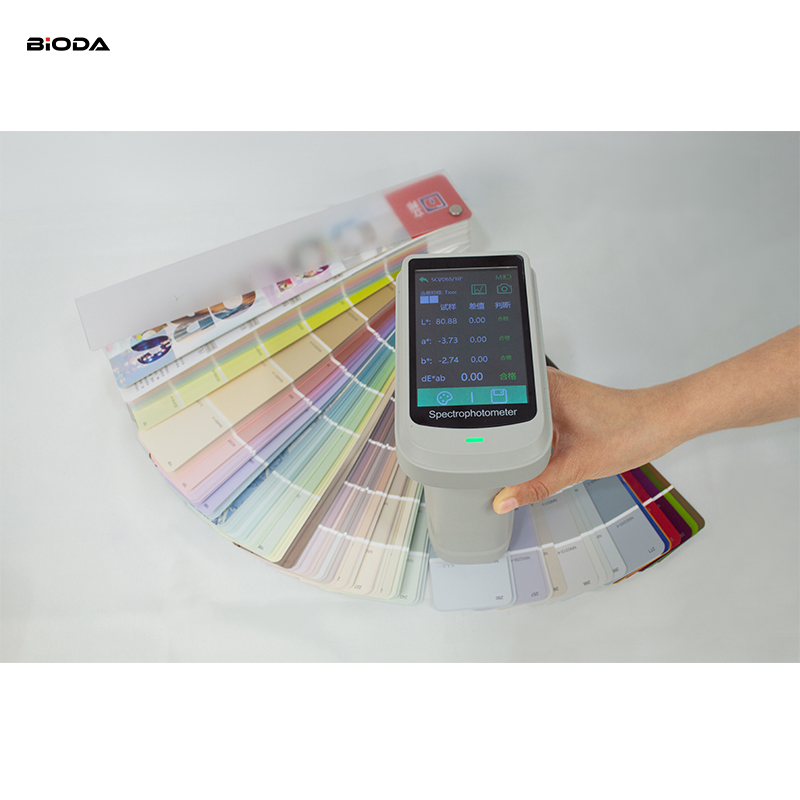

1. Test scenario diagram

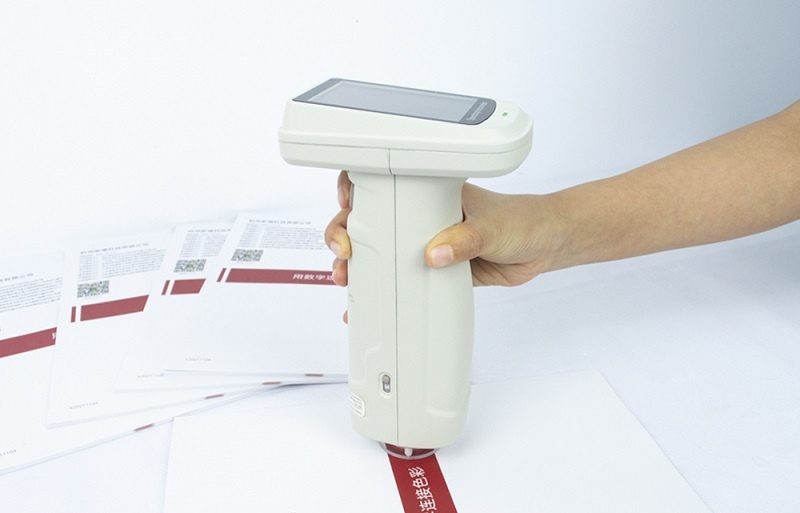

Measure print color

Free pre-sale sample test to provide you with professional data report

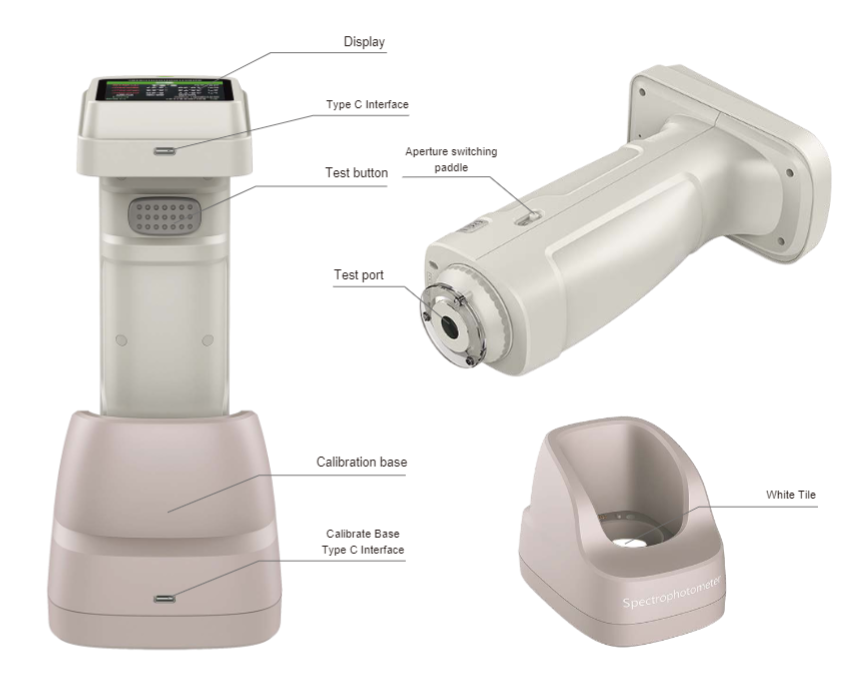

1. Appearance structure and accessories

1. Technical parameter

45 degree circular illumination/0 degree angle reception

When a white tile is measured 30 times at 5-seconds interval with MAV

BCRA Series II, average measurement of 12 tiles

Options
