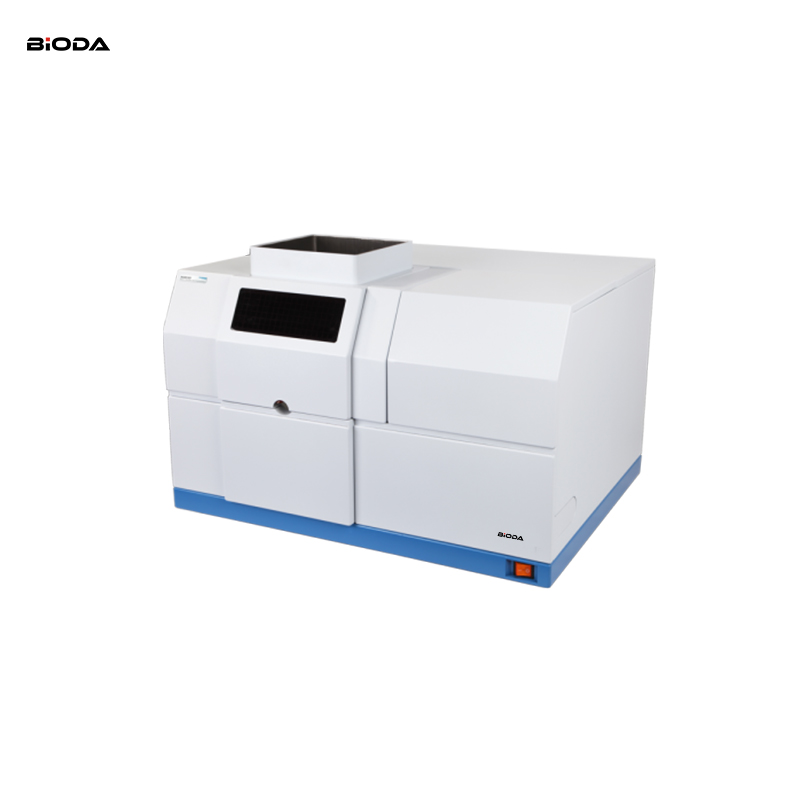

AA4530F AAS Spectrophotometer

AA4530F Atomic Absorption Spectrophotometer Integrated floated optical platform design can obviously improve the optical system shock resistance and keep stable though use the optical signal for a long term.

Characteristics

● Completely controlled by PC.
● Integrated floated optical platform design can obviously improve the optical system shock resistance and keep stable though use the optical signal for a long term.
● Eight light stands can be changed automatically and preheat the eight lights meantime as well as optimize the working condition of the hollow cathode lamp.
● Position adjusting: the best height of the flame burner and can automatically set the front and rear positions.
● Fully automated wavelength scanning and peak searching.
● Complete safety chains protection equipment: the function of warning and automatic safety protection towards  the wrong burner, leakage of the gas, under voltage of air and the abnormal flameout.
● Deuterium lamp and self-absorption background regulation.
● Data processing: super strong database, possesses more than 500 data self-storage and cut-off storage function, can store the analyzed result with the form of EXCEL and the testing method and the result can be randomly called.
● Measuring method: flame absorption method and emission method.
● Result printing: parameter printing, data result printing and diagram printing

Complete Automatic Controlling System

With the help of the software, the following can be easily achieved
● Selection of the element lamp
● Up-down-front-rear adjustment of the lifter
● Adjustment of the optical energy
● Selection of the slit
● Determination of wavelength scanning and peak searching
● Selection of the atomizer
●  Setting of the background deduction method
● Controlling of the gas flow
●  Automatic flaming and flaming out
● Setting of the graphite furnace testing method

Advanced Graphite Furnace Tempera-Ture Controlling Technology

● The bringing in of PID technology can effectively overcome the influence on the temperature rising process caused by the voltage fluctuation and the resistance change to make more accurate controlling process.
● The combination of the 3ms/time fast sampling technique can make more accurate and reliable testing data.
● The fast heating capacity can improve the flexibility of the elements further.
● Use the ordinary power source of 220V without need of dynamic power of 380V.
● The maximum procedure heating capacity setting of 20 levels can make a more convenient and easier test of different samples.
● Three grades adjustable gas flow can accustom to more application needs.
● Can timely alarm when the gas and water is stopped and insufficient gas and water, can avoid the equipment damage and measuring error.

Safe, Reliable And Convenient Flame System

● EPC can control the flow of Acetylene (C2H2) more accurately and it is a kind of system which also can operate easily.
● Efficient atomization system enables a higher sensitivity.
● The whole operation system has a high security as the fire safety system can alarm whenever the electricity is cut off, abnormal flame occurs, a lack of pressure happens or the burner does not match well. And it will automatically turn off the gas, prohibit temper ing. Thus it keeps the operation people and equipment from harm and damage.

Multi-Functional Software Workstation

● A workstation that is supported WINDOWS7
● The rich menu brings great convenience to the use of customer
● Convenient conversion between different menus makes the operation more easily
● Various analytical correction methods provide the users more choices
● Basic default parameter settings enable even the beginners can do the normal operation
● Flexible storage, editing and printing methods give the user largest support

Specifications

● WL range:190-900nm

● WL accuracy: ≤±0.15nm
● WL repeatability: ≤0.04nm
● Spectrum bandwidth: 0.1nm, 0.2nm, 0.4nm, 1.0nm, 2.0nm

● Preciseness:0.5%

● Base line stability: ±0.002Abs/30min
● Characteristic concentration of copper: ≤ 0.02μg/ml/1%
● Detection limit of copper: ≤ 0.004μg/ml

● Grating:1800 lines/mm

● Inflamer:All-metal titanium burner

● Atomizer:Effective glass atomizer

● Lamp stand: 8

● D2 background correction ability:When the background is 1 A, the background ability should be deducted not less than 50 times; self absorption background deduction method

● Power supply: 220V 3A, 50Hz
● G.W.: 138Kg / 56Kg
● Package size:860mmx705mmx755mm (Main instrument)  545mmx445mmx1385mm ( Accessories )

Flame System

● Acetylene air burner: 100mm
● Ignition dynamic baseline drift: ≤0.006A/30min
● (Cu) Characteristic viscosity: ≤0.025μg/ml/1%
● Related standard deviation of the accuracy: ≤0.5%(Cu, absorbance>0.8A) (detection limit Cu≤0.008μg/ml)

● Safety system: Can automatically cut off the gas when the pressure is not enough, thepower is off, flameout and unconformity of the burner.

Standard Accessories

● PC workstation
● Inkjet printer
● Oil free Air compressor
● Acetylene reducing valve
● Cu Hollow cathode lamp
● Air filter

Optional Accessories

● 4510GF graphite furnace system

● AS4020 graphite furnace autosampler

● AS800 cooling water circulation machine

● AAH-1 Hydride generator

● Hollow cathode lamps of various elements

Optional Accessories  Technical parameters:

4510GF Graphite Furnace

The 4510GF graphite furnace is used for atomic absorption analysis using flameless heating and is an important supporting equipment for the 4510F atomic absorption spectrophotometer. It is an instrument specially used to measure trace metal elements. It injects the sample to be tested into a graphite tube, and under the protection of inert gas, the sample is heated at different temperatures to remove the moisture in the sample through the drying stage and the ashing stage to remove matrix interference without losing the measured elements in the original sample. The content of the element in the sample is fully atomized in the atomization stage, so that the content of the element to be measured in the sample can be measured sensitively and accurately. The residual sample left in the graphite tube is removed through the high-temperature cleaning stage.

Main functions and technical indicators:

● With the function of protecting the air path:

a) Control the opening and closing of the two protective gases inside and outside the graphite tube;

b) Has the function of adjusting the flow of inert protective gas in the graphite tube

● With alarm function:

a) It has an alarm function for insufficient inert gas pressure and can stop program execution;

b) With furnace overheating alarm function:

● With high-power heating function: (1500℃ ~ 3000℃)

● With manual heating function: (1000℃ ~ 3000℃)

● Protective gas: Argon (purity above 99.99%, inlet pressure ≥0.25MPa)

● Cooling water: The flow rate of clean water source is not less than 2L/min

● Display mode: The graphite furnace interface is displayed by the host workstation

● Communication port: RS-232

●Number of heating steps: 20 steps

● Nominal temperature: 20℃ ~ 3000℃

●Slope heating time: 0s ~ 999s

● Maintain heating time: 1s ~ 999s (the sum of the slope heating time and the maintaining heating time is not greater than 999s)

● Measurement repeatability: ≤ 3% (Cu)

● Detection limit: Cd≤1.0×10-12g

● Background correction capability: When the background attenuation signal is 1Abs, the product has more than 50 times the background correction capability

● Linear error: Cd≤15%

●Power supply: AC220V±22V, 50Hz, 30A, 6600W

● Instrument size: 570mm×280mm×440mm

● Net weight: 60kg

AS4020 graphite furnace autosampler

The AS4020 graphite furnace autosampler is an important optional accessory to improve the technical specifications and automation of the 4510 and 4530 atomic absorption spectrophotometers. Under the control of the graphite furnace system, functions such as automatic preparation of standard solutions, automatic sample preconcentration, automatic sample dilution, automatic addition of matrix modifier, and automatic cleaning can be performed.

The main parameters:

●Quantity of sample cups: 95 pcs

● Sample cup capacity: 1.5mL

●Quantity of reagent cups: 5

● Reagent cup capacity: 5mL

●Injection volume: 1 ~ 95μL (1μL increment)

● Injection volume accuracy: ±2% (20μL)

●Injection volume precision: ≤1% (20μL)

AS800 cooling water circulation machine

AS800 cooling water circulation machine is an important optional accessory specially designed for matching 4510GF and GA3202 graphite furnace systems.

The overall design of the horizontal chassis has beautiful appearance and compact structure. The PVC material sealed water tank prevents the introduction of pollutants, fully considers the heat dissipation problem of the small chassis, ensures the smoothness of the condenser air duct, improves the ventilation and heat dissipation performance of the whole machine, and ideally utilizes the refrigeration system. performance, improve refrigeration efficiency, save energy, and can hang external filters to meet the various needs of customers.

Technical indicators:

● Nominal cooling capacity: 800W

●Temperature control range: 5 ~ 35(℃)

●Temperature control accuracy: ±0.1(℃)

● Water pump head (MAX/rated): 10 / 8 (m)

●Flow (MAX/rated): 15 / 6 (L/min)

●Water tank volume: 15L

●Power supply: AC220V/50Hz

● Instrument size: 330mm×500mm×500 mm

AAH-1 Hydride generator

The AAH-1 hydride generator is used in conjunction with an atomic absorption spectrophotometer to determine trace amounts of arsenic, selenium, antimony, lead, tin, tellurium, germanium and cold atomic absorption in the sample using the hydride atomic absorption method. Determine the element mercury.

Product parameters:

Measurement method: continuous flow injection

Reducing agent: NaBH4

Sample liquid feeding rate: 0~7mL/min

Reagent feeding rate: 0~2.5mL/min

Combustion head: heating quartz tube (heated by acetylene combustion)

Carrier gas: Ar, gas supply pressure 0.32MPa

Power supply: 220V, 50Hz, 30W

Size: 290×220×208mm
