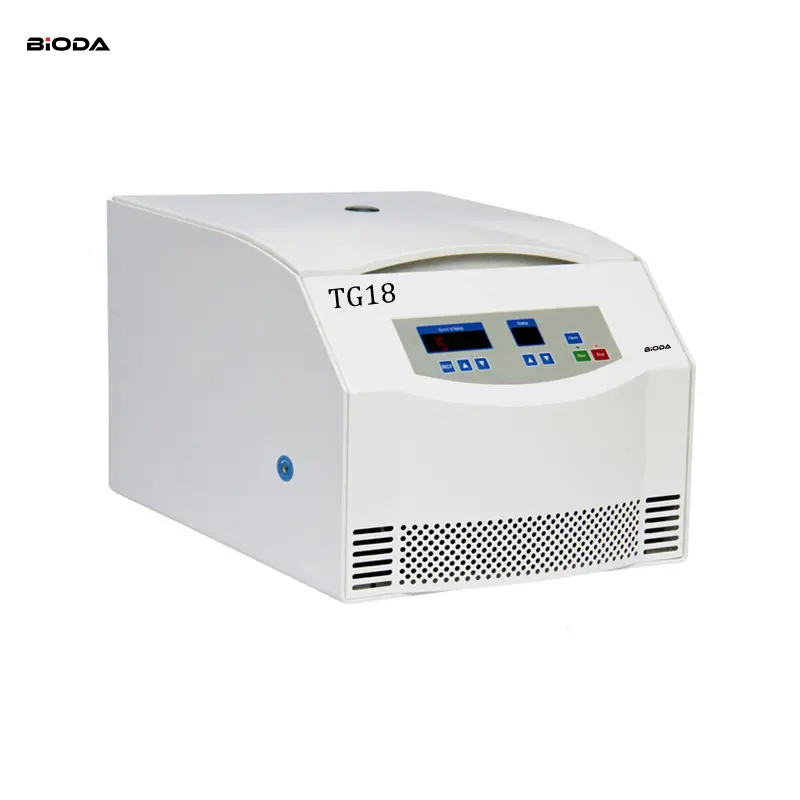

TG18 Tabletop 21000rpm High Speed Low Speed Non-refrigerated Large Capacity Multi-purpose lab centrifuge
TG18 Tabletop 21000rpm High Speed Low Speed Non-refrigerated Large Capacity Multi-purpose lab centrifuge
It's widely used in the field of animal and plant molecular biology, which is the ideal instrument for seperating the chemical substances in the cell and purifing the microorganisms, viruses, bacteira and subcelluar etc.
Metal housing with 3-tiers protection. It can hold both swing out rotors and angle rotors in low speed and high speed spining to switch smoothly. And its Quiet noise, Less vibration & variety rotors guarantee a perfect separation.
Features:
1. Max. Speed 21000rpm, max. volume 4x800ml, can be used for 5ml/10ml/15ml/30ml/50ml/100ml centrifuge tubes.
2. Brushless DC motor in great torque, no powder pollution, free maintenance, quick in speed up and down.
3. Can store 10 programs, automatically calculate and synchronously display the RCF data. Digital display indicates the speed, time, temperature and RCF. The parameters can be changed in operation, no need to stop the centrifuge which is quite convenient.
4. The centrifuge body is made of high-quality steel, and with high-quality steel centrifuge chamber, safe and reliable.
5. Automatically electric lid lock, over speed/over temperature protection and imbalance protection.
6. There are many kinds of rotors for your choice, both in high speed and low speed.
TG18 High Speed/Low Speed Centrifuge Technical Parameters:
Max. Speed | 21000rpm |
Max. RCF | 30910xg |
Max. Capacity | 4x800ml |
Timer | 0-99min |
Speed Accuracy | ±20rpm |
Noise(DB) | ≤65DBA |
Voltage(V/HZ) | AC220V/110V,50HZ 10A |
Dimension(LxWxHmm) | 685x500x385mm |
Net Weight(Kg) | 70KG |
TG18 High Speed/Low Speed Centrifuge Matched Rotors:
Order No. | Rotor Type | Max Speed(r/min) | Volume(ml) | Max. RCF(xg) |
G18-1 | Swing Rotor | 4000 | 4x800ml | 3450 |
G18-2 | Microplate Rotor | 4000 | 4x4x96well | 2940 |
G18-3 | Microplate Rotor | 4000 | 2x4x96well | 3210 |
G18-4 | Microplate Rotor | 4000 | 2x3x48well | 2300 |
G18-5 | Swing Rotor | 4000 | 4x30x5ml vacuum tube | 2840 |
G18-6 | 4x30x7ml vacuum tube | 3140 | ||
G18-7 | 4x18x10ml vacuum tube | 3140 | ||
G18-8 | Swing Rotor | 4000 | Fat bottle | 3830 |
G18-9 | Fixed Rotor | 16000 | 4x8PCR | 15760 |
G18-10 | Fixed Rotor | 15000 | 6x8PCR | 21420 |
G18-11 | Fixed Rotor | 16000 | 8x8PCR | 17480 |
G18-12 | Fixed Rotor | 15000 | 12x8PCR | 22930 |
G18-13 | Fixed Rotor | 15000 | 40x0.5ml | 22920 |
G18-14 | Fixed Rotor | 21000 | 12x1.5/2ml | 30910 |
G18-15 | Fixed Rotor | 16000 | 24x1.5/2ml | 23440 |
G18-16 | Fixed Rotor | 14000 | 30x1.5/2ml | 20800 |
G18-17 | Fixed Rotor | 13000 | 48x1.5/2ml | 17930 |
G18-18 | Fixed Rotor | 16000 | 16x5ml | 22020 |
G18-19 | Fixed Rotor | 16000 | 6x10ml | 21500 |
G18-20 | Fixed Rotor | 15000 | 12x10ml | 22680 |
G18-21 | Fixed Rotor | 13000 | 16x10ml | 19490 |
G18-22 | Fixed Rotor | 13000 | 8x15ml | 17790 |
G18-23 | Fixed Rotor | 11000 | 12x15ml | 14330 |
G18-24 | Fixed Rotor | 5000 | 24x15ml | 3500 |
G18-25 | Fixed Rotor | 5000 | 30x15ml | 3830 |
G18-26 | Fixed Rotor | 14000 | 6x30ml | 19060 |
G18-27 | Fixed Rotor | 13000 | 6x50ml(conical) | 18840 |
G18-28 | Fixed Rotor | 13000 | 6x50ml(round) | 18730 |
G18-29 | Fixed Rotor | 5000 | 12x50ml | 3860 |
G18-30 | Fixed Rotor | 4000 | 24x50ml | 2970 |
G18-31 | Fixed Rotor | 13000 | 4x85ml | 18940 |
G18-32 | Fixed Rotor | 12000 | 4x100ml | 14850 |
G18-33 | Fixed Rotor | 10000 | 6x100ml | 11380 |
G18-34 | Fixed Rotor | 4000 | 12x100ml | 2970 |
G18-35 | Fixed Rotor | 12000 | 24 capillaries | 15800 |
G18-36 | Swing Rotor | 15000 | 4x5ml | 19920 |
G18-37 | Vertical Rotor | 16000 | 16x5ml | 16540 |
G18-38 | Vertical Rotor | 14000 | 8x30ml | 19750 |
