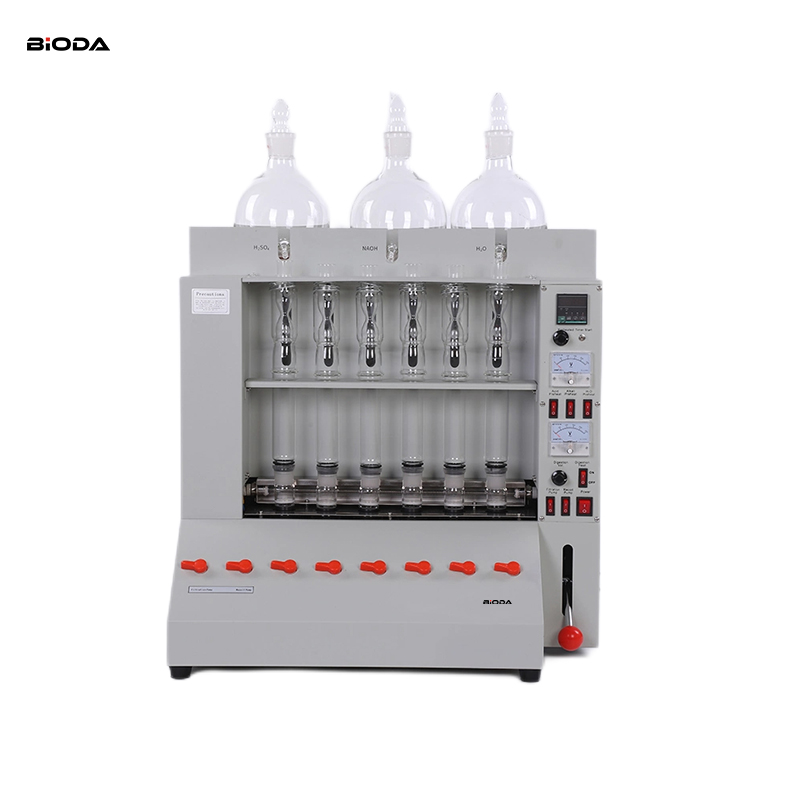

Raw Fiber Analyzer CXC-06
Raw Fiber Analyzer CXC-06
Fully automatic fiber tester is based on the current commonly used acid and alkali cooking method cooking samples, and weight measurement to get the sample of crude fiber content of the instrument. It can measure the content of crude fiber in all kinds of grain, feed, cereal, food and other agricultural by-products, and can measure 6 samples at the same time with automatic temperature control.
Measurement principle:
The instrument uses accurate concentrations of acids and bases to decoct the sample under specific conditions, then removes the soluble material with ethanol, and after high-temperature cauterization and deduction of the amount of minerals, the content is called crude fiber. It is not an exact chemical entity, but only an approximate composition measured under recognized and mandatory conditions, in which cellulose is predominant, with small amounts of hemicellulose and lignin.
Technical parameters:
Model | CXC-06 |
Measuring object | Raw / Coarse fiber content in various kinds of grain, feed, food, and other agriculture and sideline products |
Measuring sample quantity | 6/times |
Reproducibility error | Raw fiber level < 10% absolute value error≤0.4% |
Measuring time | about 100min (including acid 40min, alkali 40min, filter and wash 20 min) |
Water supply | water pressure >1.5MPa |
Water temperature | <20°C |
Size | 670×450×670mm |
Weight | 30kg |
Voltage | AC220V/50Hz |
Power | 2800W |
