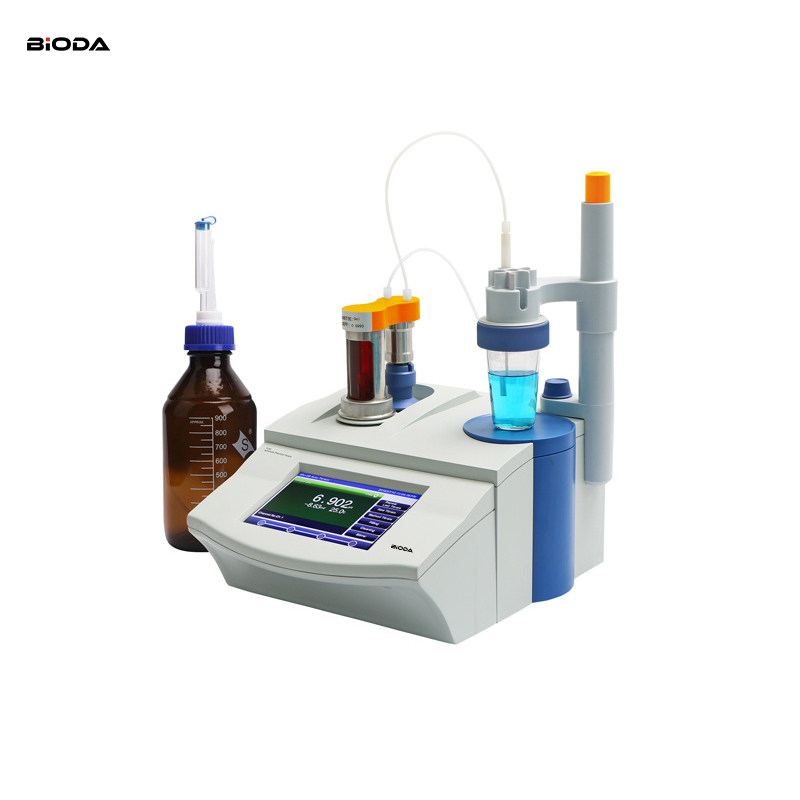

Ti-50 Automatic Potential Titrator

Ti-50 Automatic Potential Titrator

Potential titrators, also known as potentiometric titrators, are used in many industries for quality control, testing, and inspection of colleges and universities, scientific research institutions, petrochemical, pharmaceutical, drug inspection, metallurg
Send Inquiry

Ti-50 Automatic Potential Titrator

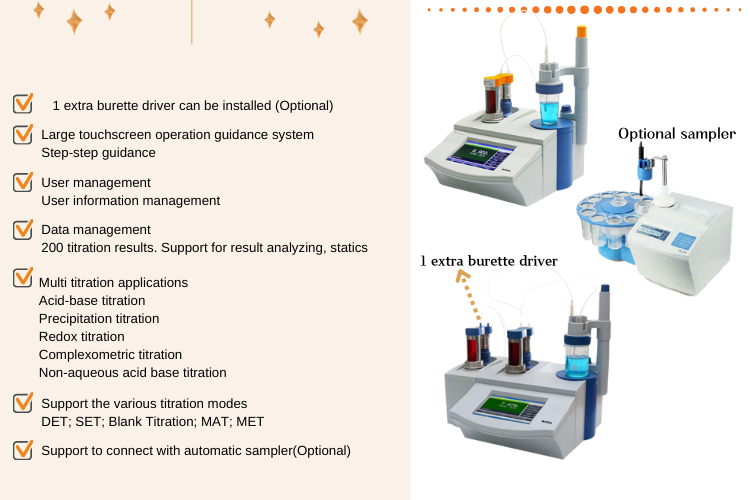

GENERAL FEATURES

² 7” colorful touchscreen and smart guide system.

² Titration methods, curves and results are displayed in detail.

² 1 extra burette driver can be installed (optional).

² Replaceable burette with high-accuracy (10 ml or 20 ml selectable).

² Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.

² Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).

² pH calibration and measurement are supported.

² Up to 100 user-defined methods and 10 user-defined shortcuts.

² Auto calculation with pre-defined formula.

² Store up to 200 titration data sets (GLP-compliant).

² Data analysis feature helps user review, compare and recalculate results.

² Data can be easily transferred to printer via RS-232 communication interface..

² Titrator can be controlled by computer via USB or RS-232 communication interface.

² Automatic sampler is supported.



PRODUCT SPECIFICATIONS

Model

Ti-50

Burette

Repeatability

0.20%

Accuracy

10ml Burette: ±0.025ml; 20ml Burette: ±0.035ml

Resolution

10ml Burette: 1/20000; 20ml Burette: 1/10000

Mechanical Unit

Resolution

1/30000

Measuring Unit

Range

(-1999.0~1999.0) mv, (0.00~14.00)pH

Resolutions

0.1mV, 0.01pH

Accuracy

pH: ±0.01pH mv: ±0.03%FS

Fluctuation

(±0.3mV±1bit) /3h

Temp. Compensation

Range

(-5.0~105.0)  ℃

Resolutions

0.1 ℃

Accuracy

±0.3 ℃

General

Power Supply

AC Adapter, 100-240V AC input, DC24V output

Dimension (mm)& Weight (kg)

340×400×400; 10
