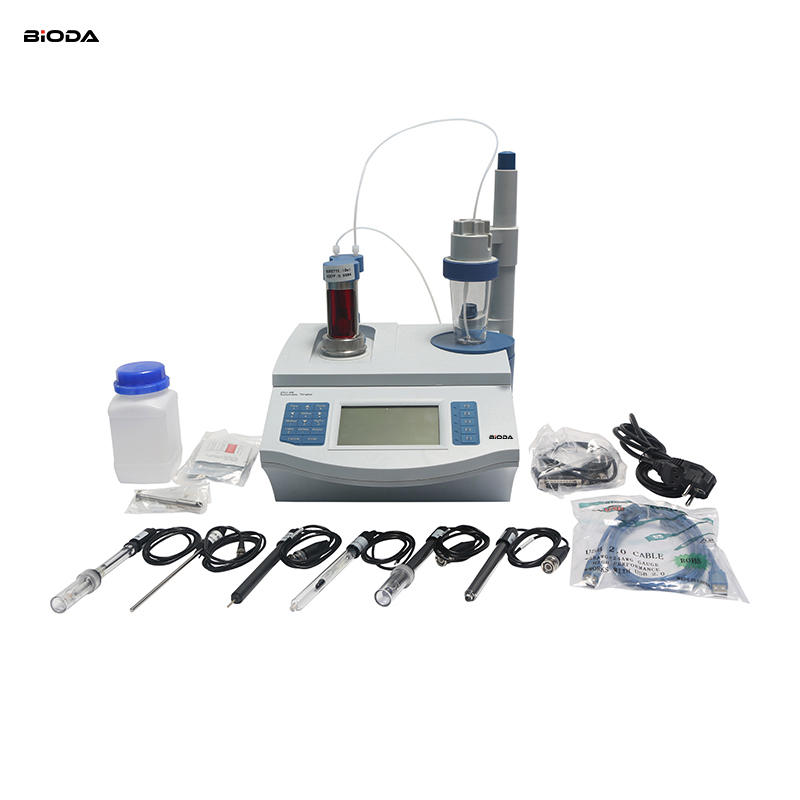

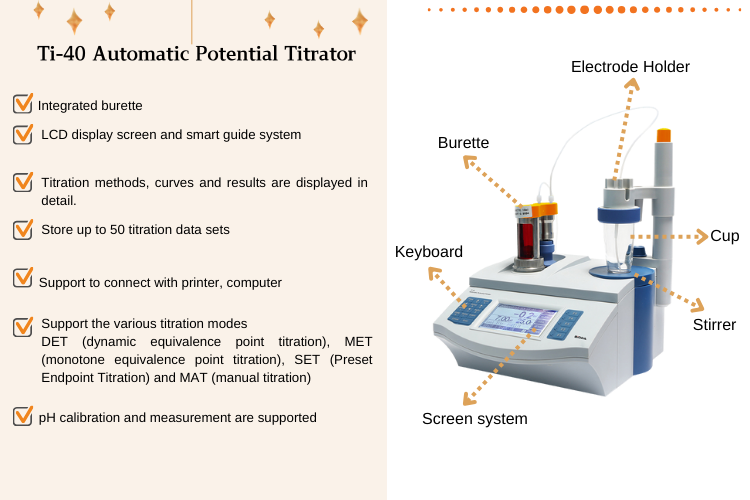

Ti-40 Automatic Potential Titrator
Ti-40 Automatic Potential Titrator
GENERAL FEATURES
² LCD display screen and smart guide system.
² Titration methods, curves and results are displayed in detail.
² Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
² Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
² pH calibration and measurement are supported.
² Store up to 50 titration data sets (GLP-compliant) and 1 latest set of titration curve.
² Data can be easily transferred to printer via RS-232 communication interface..
² Titrator can be controlled by computer via USB or RS-232 communication interface.
PRODUCT SPECIFICATIONS
Model | Ti-40 | |
Burette | Repeatability | 0.2% |
Accuracy | 10ml Burette: ±0.025ml; 20ml Burette: ±0.035ml | |
Resolution | 10ml Burette: 1/10000; 20ml Burette: 2/10000 | |
Mechanical Unit | Resolution | 1/30000 |
Measuring Unit | Range | (-1800.0~1800.0) mv, (0.00~14.00)pH |
Resolutions | 0.1mV, 0.01pH | |
Accuracy | pH: ±0.01pH mv: ±0.03%FS | |
Fluctuation | (±0.3mV±1bit) /3h | |
Temp. Compensation | Range | (-5.0~105.0) ℃ |
Resolutions | 0.1 ℃ | |
Accuracy | ±0.3 ℃ | |
General | Power Supply | AC Adapter, 100-240V AC input, DC24V output |
Dimension (mm)& Weight (kg) | 340×400×400; 8 | |
