WD-DI-II-30 Water System Reverse Osmosis RO Water Deionizer
WD-DI-II-30 Water System Reverse Osmosis RO Water Deionizer
Product Features
Ø Applicable to various water quality, the case is with powder coating.
Ø The filter element adopts open mold injection technology and inside the machine
Ø Korean quick-insert filter column is easy to replace and maintain.
Ø The electrical appliance and waterways are completely separated to avoid circuit
failure caused by moisture and water leakage.
Ø Online water quality monitoring system, immediately measure the output water quality.
Ø Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full.
Ø NSF certified pipeline has function of upgrading water quality and quantity.
Ø Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.
Ø Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.
Ø Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools. Double water intakes: pure water and deionized water

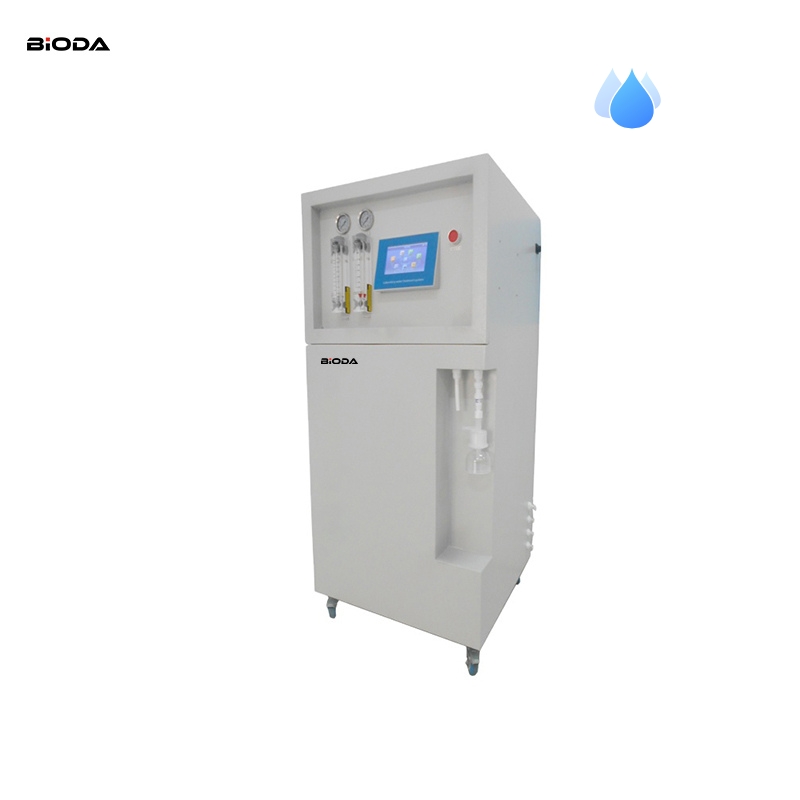

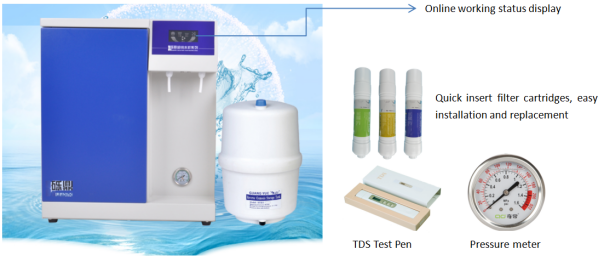

Product Image

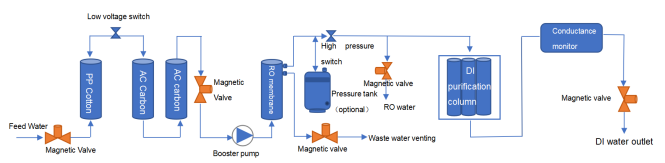

Process
Product parameter
Water rate | 10/20/30 liter per hour |
Production speed | 1.5-2 L/min（with pressure barrel） |
The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<200ppm |
RO water Parameter | |
Ion rejection rate | 97%-99% (when using a new RO membrane) |
Organic matter rejection rate | >99% when MW>200 Dalton |
Particle and bacterial rejection | > 99% |
Application | Clean glassware |
DI water Parameter(ASTM TYPE II grade water) | |
Resistivity (25℃) | 10-16 M Ω. cm @ 25 ℃ |
Conductivity | <0.1 μS/cm |
Application | Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber. |
Electrical requirements | 110-240V/50-60Hz, 48-72W |
The system configuration | Host machine (including 1 set of purification column) +12L pressure water tank+TDS pen + accessory bag |

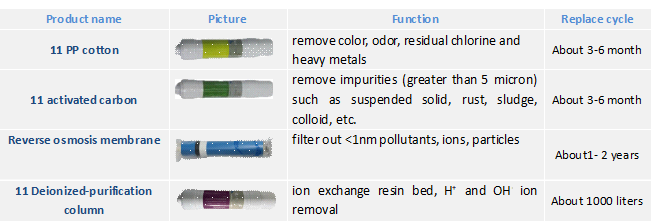

Filter consumables list
Machine SKU
SKU | Specification |
WD-DI-II-10 | 10L/H, Standard type, RO pure water, DI deionized water |
WD-DI-II-20 | 20L/H, Standard type, RO pure water, DI deionized water |
WD-DI-II-30 | 30L/H, Standard type, RO pure water, DI deionized water |
