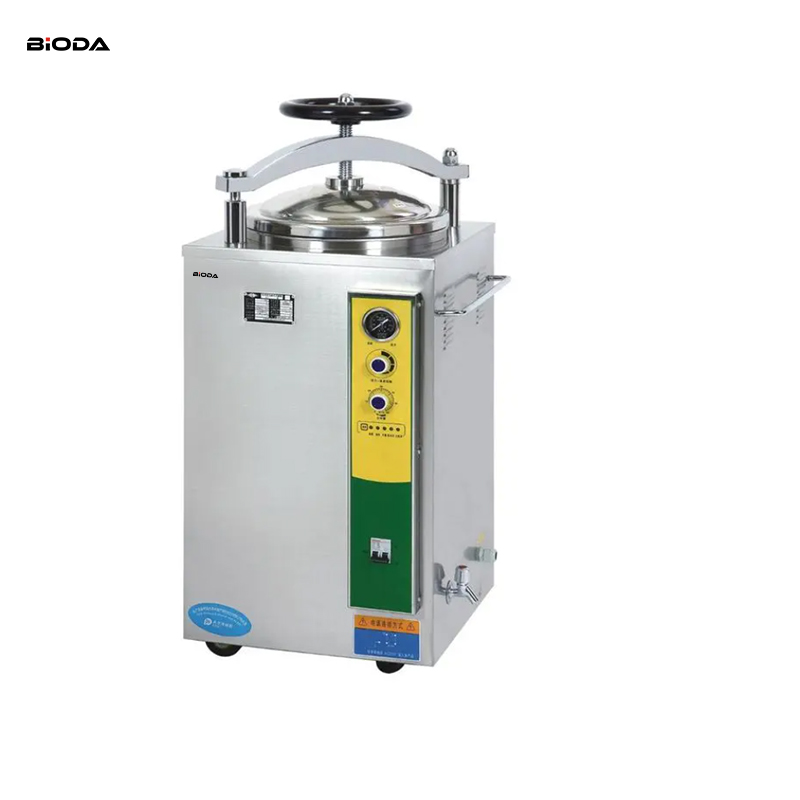

Vertical Pressure Steam Sterilizer (hand round auto LS-HJ series)
Application
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for he sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc.
Characteristics
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Pressure safety lock
4.Indicator light indicates working state
5.Over temperature & over pressure auto-protection
6.Double scale indication pressure gauge
7.Self inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate,safe and reliable11.With two stainless steel sterilizing baskets
Technical parameters
Model technical data | LS-35HJ | LS-50HJ | LS-75HJ | LS-100HJ |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa | 0.22MPa | ||
Working temperature | 134℃ | 134℃ | ||
Max working pressure | 0.23 Mpa | 0.23MPa | ||
Heat average | ≤±1℃ | |||
Timer | 0~60min | |||
Adjustment of temperature | 105~134℃ | 105~134℃ | ||
Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120(mm) | 540×560×1250(mm) |
Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
G.W/N.W | 72Kg/ 56Kg | 88Kg/ 68Kg | 100Kg/80Kg | 110 Kg/85Kg |
