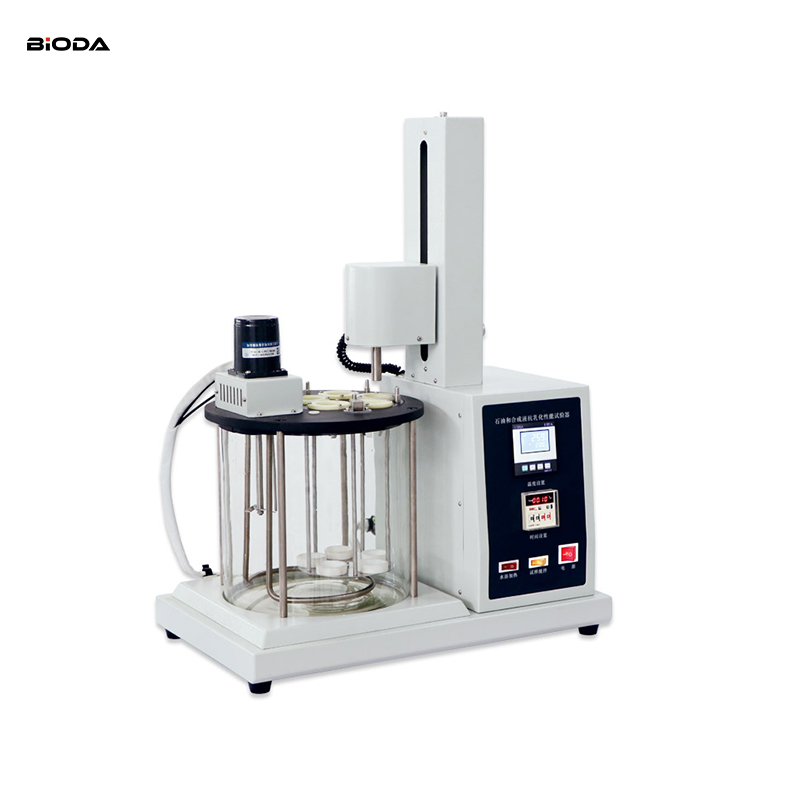

BYD-7305 Demulsibility Characteristics Tester(Desktop structure)

Summary
  This instrument is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids — Determination of demulsibility characteristics and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. It is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.

I. Main technical features
1. This instrument adopts small bath and desktop structure. It is easy to operate and good-looking.
2. It adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.
3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.

II. Main technical specifications

1. Power supply：   AC(220±10%)V, 50Hz

2. Total Power consumption：    ≤1200W

3. Temperature range：   (Room temp.+5∼99.9)℃

3. Temperature control accuracy：   ±1℃

4. Resolution：   0.1℃

5. Temperature display：   Digital

6. Timing range：    1s∼9min59s

7. Stirring rate：     (1500±15)r/min

8. Ambient temperature：    (15∼35)℃

Relative humidity：     ≤85％

9. Dimension：     500mm×340mm×720mm

10. Net weight：22kg

Note: If the required temperature is lower than room temperature,it can equip portable cooler manufactured by our company.
