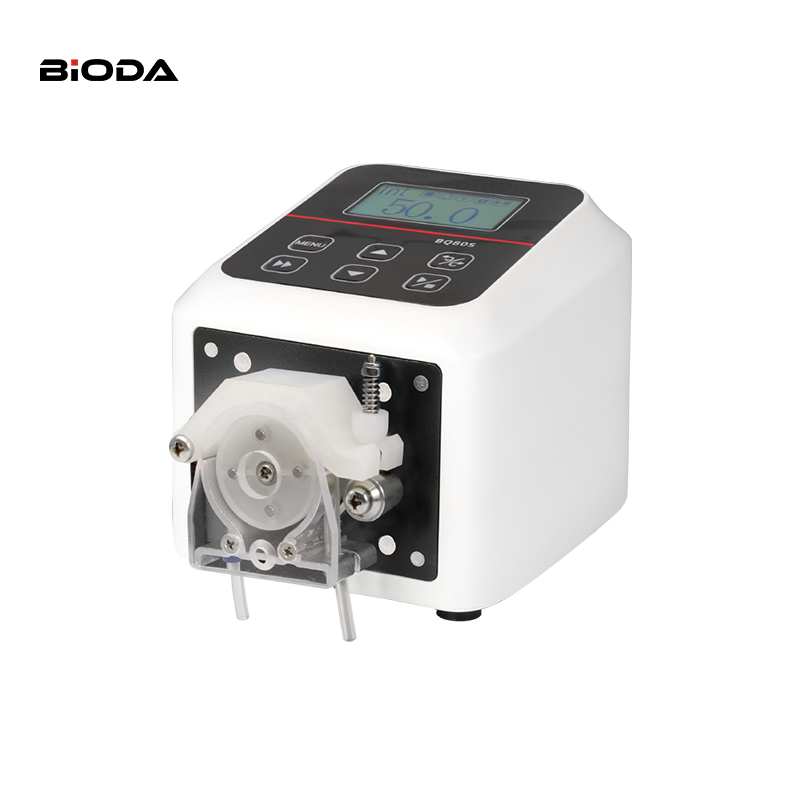

BQ80S Microflow Speed-Variable Peristaltic Pump

Functions and Features

• Using the cortex m3 core processor, the running speed is fast and the device speed accuracy is high.

• LCD display, switching between Chinese-English interface, simple parameter setting, intuitive state display.

• Mobile App remote control (optional), the remote pump operation can be realized by using  APP software. It also has monitoring functions such as operating status (optional).

• Locked rotor alarm, leakage alarm (optional). And send the alarm signal to your mobile APP, remind you to deal with it in time, avoid unnecessary losses.

• The tube life alarm function dynamically calculates the remaining service life of the tube and reminds you to replace the tube in time.

• Added slow stop function to make the equipment run more reliable.

• Start/stop, reversible direction, full speed and adjust speed, state memory (power-down memory).

• External analog adjust speed, external control start-stop, reversible direction, external control signal physical isolation.

• The type of external speed control signal (voltage or current) can be switched on the control panel.

• Dust proof and moisture-proof circuit board design, external control signal supports 5-24V wide voltage input, super anti-interference characteristic.

• Design of injection shell, effectively prevent the erosion of various organic solvents, easy to clean.

• RS485 communication, MODBUS protocol is available, easy to connect with other equipments.

• Open multiple control parameters, suitable for ODM custom applications.

Specifications

•  Flow rang: 0.0035~34mL/min

•  Speed range: 0.1~80 rpm

•  Speed resolution: 0.1rpm

•  Speed accuracy: <±0.5%

• Working time: 0.1～999 S/Min/H/D

• Dispensing interval time: 0.1～999 S/Min/H/D

• Dispensing time: 1～999,“0” Infinite loops

• External control: (1) Start/Stop: passive contact, external control input level (5~24V); (2) Forward/Reverse: passive contact, external control input level (5~24V); (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set

• Communication interface: RS485 communication interface, MODBUS protocol is available,DB15 external control interface

•  Power supply: AC100-240V/50Hz/60, power input DC24V

• Power consumption: <10W

•  Noise: 60DB

•  Working environment: Temperature 0 ～ 40℃, relative humidity＜80%

•  Dimension(L×W×H): DW10-1: 152×112×107mm, DW10-3:164×112×107mm

•  IP grade: IP31

BQ80S Applicable Pump Head and Tube, Flow Parameters

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Dimension(mm)
