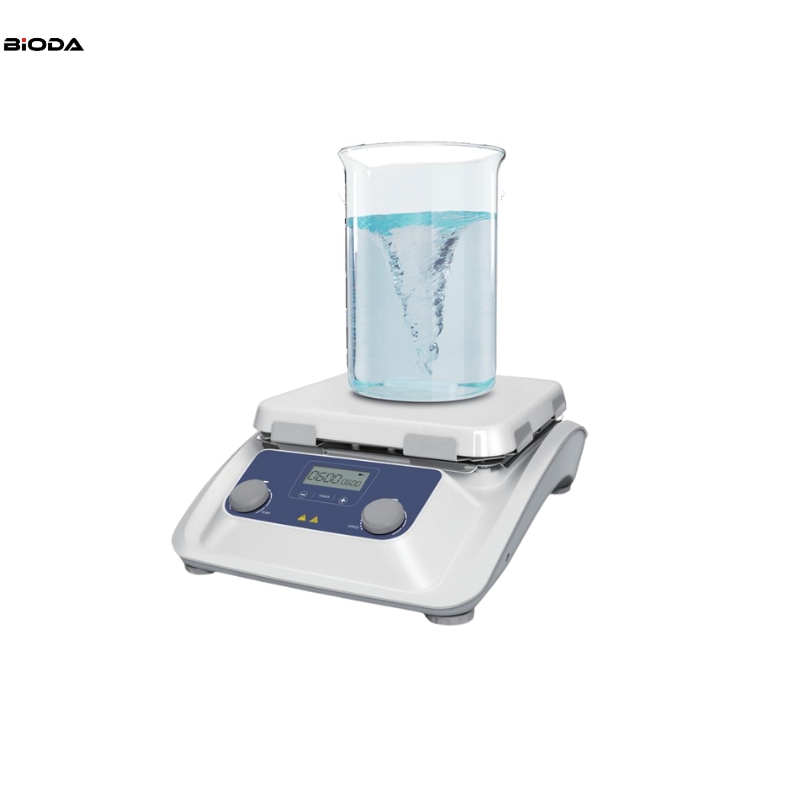

LCD 30L 500℃ Heating Magnetic Stirrer
Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
Send Inquiry
Features
1.Large volume: Up to L of liquid on -inch hot plate with powerful magnetic stirring
2.Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
3.LCD display for precise monitoring of speed and temperature. External temperature control is possible by connecting
the temperature sensor (PT 1000 ) with an accuracy at± . °C
4.Digital speed control of 100~ 1500rpm
5.Max. heating plate temperature 500℃
6.The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
7.Data connector: The SD card records the instrument's running data in real time.
8.Timing function: the running time of the instrument can be set.
Technical parameters:
| Specifications | MS10-H500-Pro |
| Work plate Dimension [Wx D] | 254x254mm(10 inch) |
| Work platematerial | Glass ceramic |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max.stirringquantity,[H₂O] | 30L |
| Max.magneticbar[length] | 80mm |
| Speed range | 100-1500rpm,resolution±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-500℃, increment 1℃ |
| Temperature control accuracy | ±1℃(<100℃)±1%(>100℃) |
| Overheating protection | 540℃ |
| Temperature display accuracy | ±0.1℃ |
| External temperature sensor | PT1000(accuracy±0.2℃) |
| "Hot"warning | 50℃ |
| Data connector | SD card |
| Protectionclass | IP20 |
| Motor ratingoutput | 10W |
| Power | 1700W |
| Heatingoutput | 1500W |
| Voltage,Frequency | 100-120/200-240V,50/60Hz |
| Dimension [WxDxH] | 328x424x138mm |
| Weight | 7.2kg |
| Timer function | 1min-99h59min |
| Permissible ambient temperature and humidity | 5-40℃,80%RH |
