High Torque Large Volume 70l Industrial Electric Laboratory Mixer Digital Overhead Stirrer
Product feature

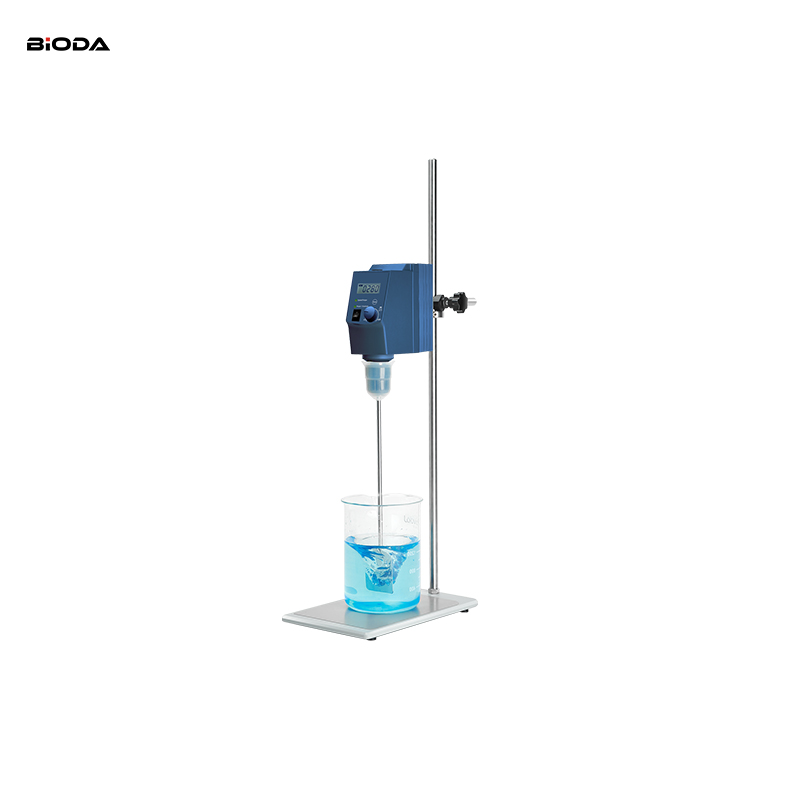

OS70-Pro LCD Digital Overhead Stirrer
Stirring paddle “top- cross" design, easy to replace the container
LCD display of set and actual speed, torque and time
Spillage and overload protection safety circuits
Brushless DC motor for long life, maintenance free
Self - locking drill chuck, tools free
Start/run smoothly, prevent sample splatter or overflow
Constant speed despite viscosity change of the sample
Silicone cover protecting drill chuck from erosive vapor
PRODUCT PARAMETERS
Cat.No.
8033300100
Max. stirring quantity[H2O]
70L
Speed range
50-1100rpm
Speed display accuracy
±10rpm
Time settings range
0-99h59min
Max. torque
300N·cm
Viscosity max.
100000mPa·s
Motor type
Brushless DC motor
Speed display
LCD
Torque display
LCD
Overload protection display
LCD
Data interface
RS232
Chuck clamp range diameter
0.5-10mm
Protection class
IP21
Motor input power
180W
Motor output power
160W
Power
200W
Voltage,Frequency
100-240V, 50/60Hz
Dimension[WxHxD]
83 x 220 x 186mm
Weight
3.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
