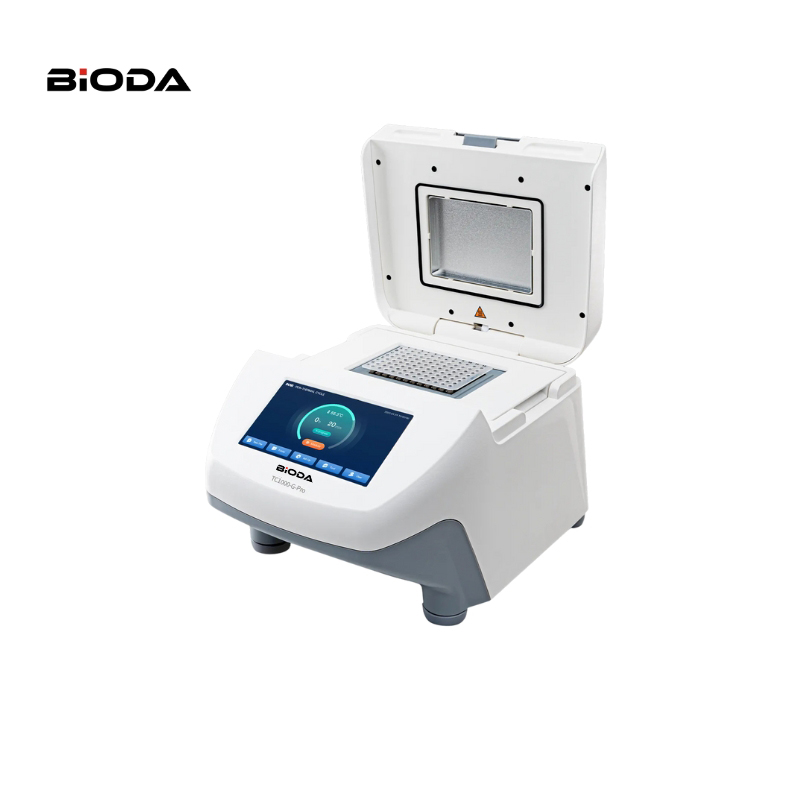

Touchscreen Wi-Fi Programmable Dual-Block 96-Well Fast Gradient PCR Thermal Cycler Machine
Product feature
TC2000-G2 Thermal Cyeler Gradient
10.1-inch large screen new Ul interface, divided into single-channel / dual-channel /three-channel, to meet differentexperimental requirements
With advanced gradient temperature control technology, high-perfomance and long-lasting Peltier refrigeration andheating,which can achieve precise temperature control in zones.
Multi-channel module design, can run several diferent PCR gradient programs at the sametime, to achievemulti-purpose machine
Self-adaptive pressure lever hot cap, close and tighten the cap in one step, can be adapted to different heights of testtubes
Supports up to 199 cycles to perform the next operation, and runs a countdown disc to visually display the remainingtime
Edge temperature compensation technology for good temperature uniformity and gradient settings for easy optimisationof expenmental conditions
Real-time display of the running status ofthe programme, you can set the security account and password according to customer demand
Automatic power failure protection, automatically execute unfinished cycles after power restoration to ensure the safeoperation ofthewhole amplification process.
Hot lid temperature and hot lid operating mode can be set to meet different experimental application requirements
USB interface, support for U-disk storage/reading PCR data, support for U-disk software update, can be customised tomeet the function of multiple file storage, support for Touch down PCR and Long PCR experiments
Compatible with common 0.2ml PCR tubes, PCR-8Strips and 96-well PCR plates (no skirt, full skirt, half skirt)
TC2000-G1/G2/G3 is an indispensable laboratory instrument in the field of molecular biology, which can be used for genesequencing, gene cloning, gene expression, mutation, and plays an important role in various fields such as agriculture,food testing,environmental science, drug development and so on.
PRODUCT PARAMETERS
Cat.No.
5034112400
Sample Capacity
96×0.2mL PCR tube | 12×PCR-8strips
Heating Temperature Range
0-105℃
Lid Temperature Range
30-115℃
Temperature Display Accuracy
0.1℃
Temperature Control Accuracy
±0.1℃
Temperature uniformity @55℃
±0.2℃
Max. Heating/Cooling Rate
5℃/Sec
Gradient Temperature Setting Range
30-105℃
Gradient Range
1-25℃，Turn off gradient on input 0
Adapter block material
Aluminum
Display
10.1inches LCD 1280×800
Input
Touch panel
User defined file system
1-25℃, enter 0 to turn off the gradient
Power off protection
Yes
Voltage,Frequency
100-240V,50/60HZ,1000W
Dimension[WxDxH]
310×422×264mm
Weight
11Kg
