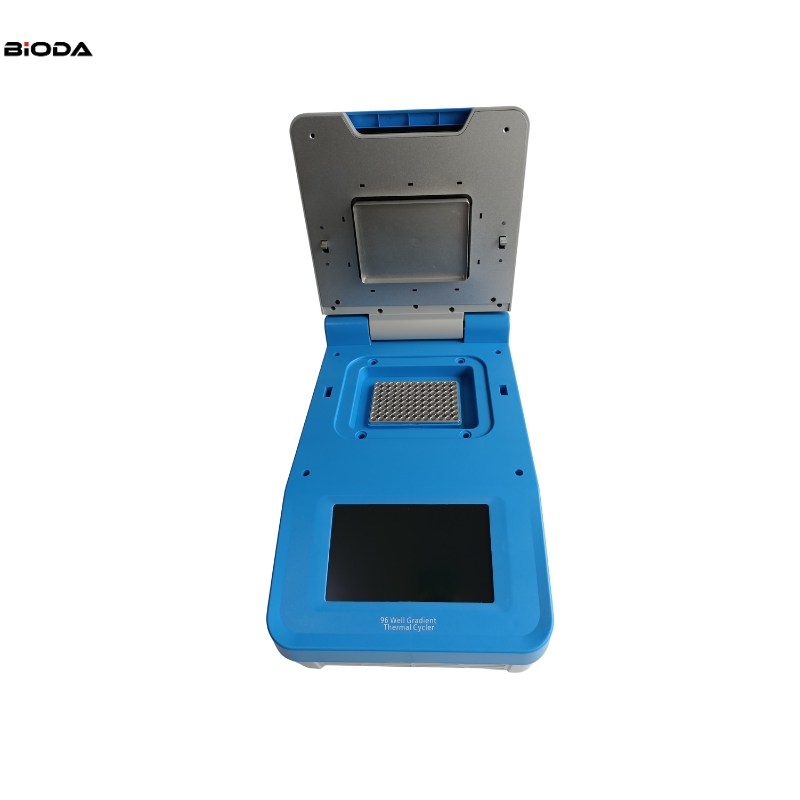

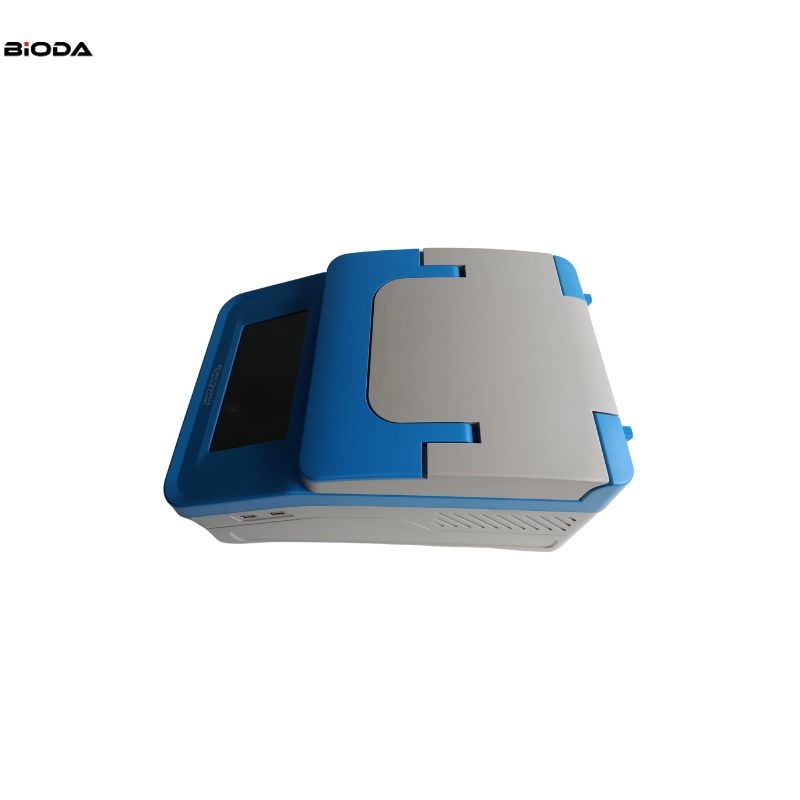

Gradient Thermal Cycler—MTC9600


Introduction

Gradient Thermal Cycler is a gene amplification instrument with gradient PCR function derived from ordinary PCR instrument. It is produced by basing on highly reliable semiconductor peltier and embedded operating system. Gradient thermal cycler is ideal for thermal cycling and protocol optimization in molecular biology, medical, food, genetic testing and etc.

Features:

Excellent amplication due to high quality semiconductor peltier.

Reinforced aluminum block with anodizing technology can keep rapid

heating-conducting property and have enough corrosion resistence.

The fastest heating and cooling rate of 5°C /s save valuable experimental time.

7-inch color touch screen—for easy programming of users.

Self adjusting heated lid: excellent anti-evaporation effect, it can adapt to different height test tubes.

Gradient PCR set up with 12 different temperatures.

Built-in standard procedure document template can quickly edit the required documents.

One-click quick incubation function can meet the needs of experiments such as denaturation, enzyme cutting/enzyme-link, and ELISA.

Support U disk to get PCR data to update software.

Automatic restart after power failure.

Automatic fault detection and alarm function.



2. Parameters

Capacity

96x0.2ml (0.2ml PCR tubes, 8-tube strips)

Temp. setting range

0°C ~105°C

Temp. control range

RT.-25°C ~105°C

Heated lid temp. setting range

30°C ~112°C

Heated lid temp. control range

RT+5°C ~112°C

Temp. uniformity

≤±0.2°C

Temp. accuracy

≤±0.2°C

Max. heating rate

5°C /sec

Max. cooling rate

4°C /sec

Temp. display resolution

0.1°C

Temp. control method

Block/Tube

Display

7-inch color touch screen, 800x480 Pixel

Communication interface

USBx2

Tm calculation

Automated

 Program memory

10000+

Time increment/decrement

-999~999s

Temp. increment/decrement

-10~10°C

Gradient temp. range

30~105°C

Gradient setting range

0.1~30°C

Gradient temp. uniformity

≤±0.2°C

Gradient temp. accuracy

≤±0.2°C

Temp. change rate

0.1~4°C /s

Single step time range

 0~9h59min59s/∞

Program max. cycle numbers

200

Max. steps of the program

30

Program pause function

Yes

16°C insulation

Forever

Auto data protection

Yes

On-screen report

Yes

Power

800W

Voltage

AC100~240V, 50-60Hz

Fuse

250V  10A  Ф5×20

Dimension(mm)

420x260x245

Weight(kg)

11
