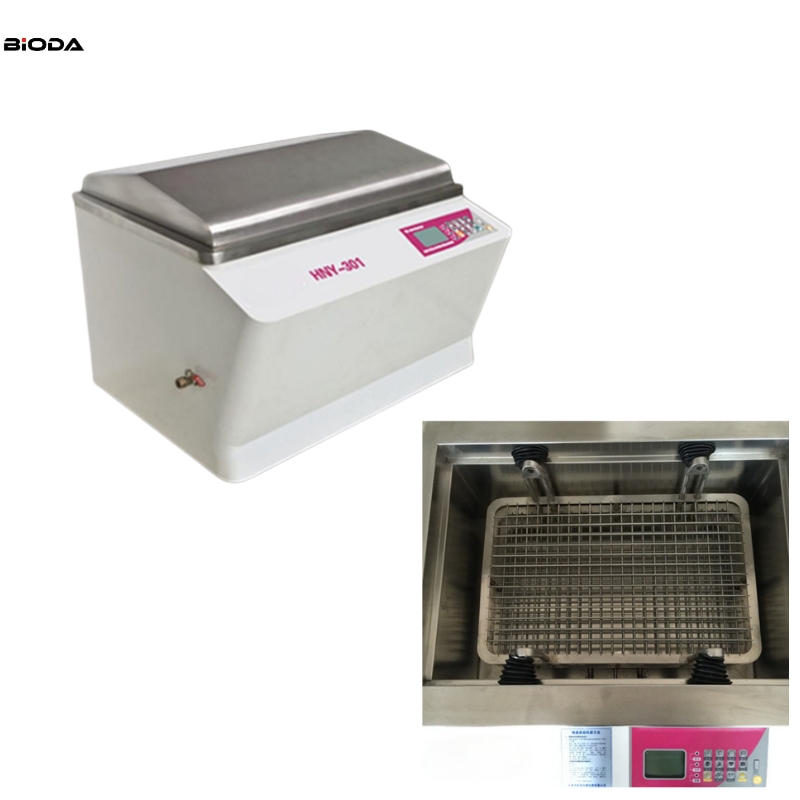

HNY-301 Convolution Water Bath Shaker
Features
Automatic analyzing, listing table, charting and printing on downloaded dates.Itcan trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
High quality servo motor.Speed control accurately, noiseless, durable and high efficiency.
Multi-steps rotate speed, temperature and time control systems.Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
Unique slow-start design.Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ±1RPM
High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, whenthe measured temperature deviation from the set value ≥±3 °C,
Unique drive system.It makes the machine running smoothly, stably, durably and reliably.
LCD display with brightillumination. Running parametersand statues are clearly displayed on theLCD screen for easy visualizationand programming.
Memorizedand protectedoperating parameters.Unexpected power outage, the original set-up process can be automatically resumed.
Functionof encrypted and lockedoperating parameters.It can avoidhuman errors.
Continuouslyrunningor timing. Shakers can display the set time and time remaining
Clock and date can be displayed (touch screen only).
Technical parameters:
Model | HNY-301 |
Specifications | |
Control model | P.I.D microprocessor chip |
Shake model | Convolution |
Display | LCD liquid-crystal display |
System of USB data download and analysis | NO |
Control system | Multiple Programmable mode(temp,speed,time) |
Cyclotron frequency range(rpm) | 0；20-300(To do static culture) |
Cyclotron frequency sensitivity(rpm) | ±1 |
Orbit Diameter(mm) | Φ26 |
Maximum capacity | 100ML×24 OR 250ML×15 OR 500ML×8 OR 1000ML×6 |
Standard capacity | Spring net box |
Size of platform(mm) | 498×316 |
Timing range | 0-9999h/min(Any time,continuous duty) |
Temperature range(℃） | ambient Cto 100°C（No refrigeration） |
Temperature sensitivity(℃） | ±0.1 |
Temperature uniformity(℃） | ≤0.1 |
Number of platform | One |
Outside dimension（W*D*H)（mm） | 640×620×550 |
Power（W) | 1400W |
Power supply | AC220±10% 50HZ |
Net weight(kg) | 70 |
Gross weight(kg) | 90 |
Other functions | Ultra-low speed start,Adjustable start speed，Overspeed auto-prtection，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery |
