Touchscreen All-in-One Ph Temp ORP Conductivity Tds Salinity Polarographic DO Water Quality Meter

Touchscreen All-in-One Ph Temp ORP Conductivity Tds Salinity Polarographic DO Water Quality Meter

Product featureBENCHTOP - Touch screen（Multi parameter）High-res 7 touch screen, easy for operationUser-friendly op
Send Inquiry

Multi parameter Analyzer.png

Product feature

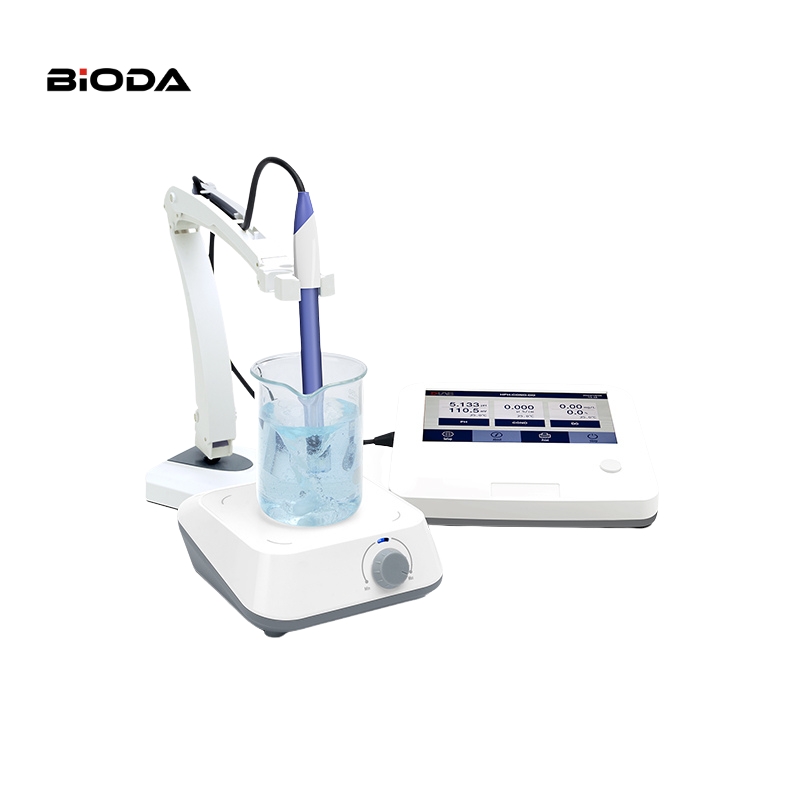

BENCHTOP - Touch screen（Multi parameter）

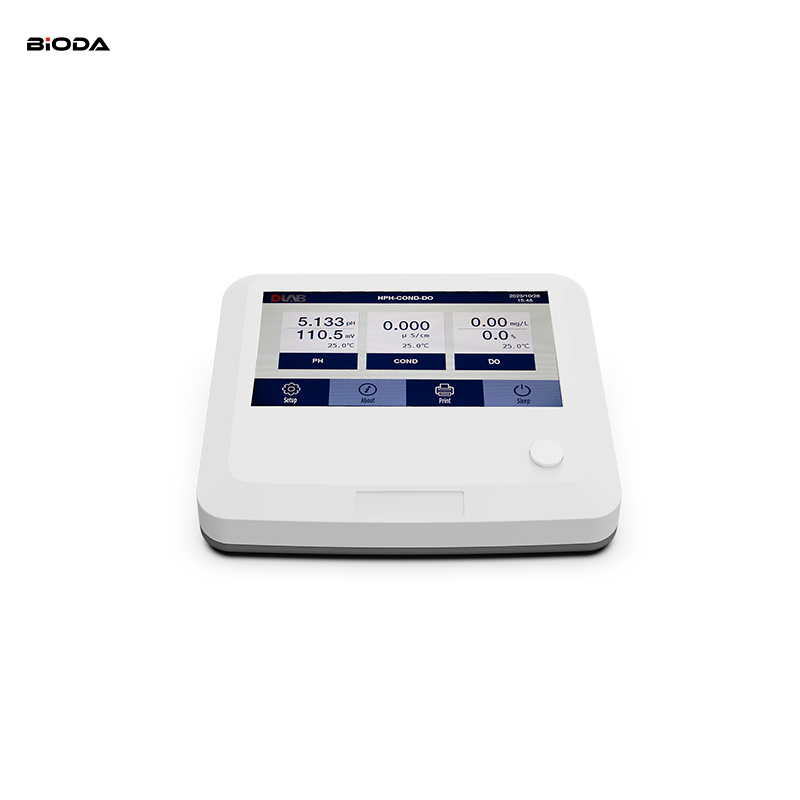

  • High-res 7" touch screen, easy for operation

  • User-friendly operating navigation by graphics and texts

  • Intelligent functions such as automatic calibration, automatic temperature compensation, timing

  • data logger, parameter setup, etc.

  • 1 to 5-point calibration for pH mode

  • Data storage: 500 readings/parameter

  • Data export: Flash disk/PC/Wireless printer (the printer is optional)

  • Equipped with a flexible probe holder, magnetic stirrer and standard calibration solution

  • Protection class: IP54

  • Equipped with various electrode holders and standard solutions, suitable for measuring different parameters.

PRODUCT PARAMETERS

Parameter

pH/mV.℃ | mV(ORP).℃ | Cond/TDS/Sal./Res.℃ | DO.℃

pH Measurement range

(-2.000~20.000) pH

pH Resolution

0.01/0.001

pH Accuracy

±0.002pH±one digit

pH Calibration points

1,2,-5pts automatic

pH ATC range

(0.0~100.0) ℃/(32.0~212.0)°F

ORP Measurement range

(-1999.9~+1999.9) mV

ORP Resolution

0.1/1

ORP Accuracy

±0.03%F.S±one digit

Conductivity Measurement range

0-2000.0mS/cm,Auto-ranging:0-19.999μS/cm;20.0-199.9μS/cm;200-1999μS/cm;2.00-19.99mS/cm;20.00-199.9mS/cm; 200.0-2000mS/cm (K=10);Match test range:0-200mS/cm;TDS:0-100.0g/L(TDS factor adjustable);Resistivity: 5.000Ω·cm-100.0MΩ·cm; Salinity:0-100ppt

Conductivity Calibration points

one point

Conductivity Resolution

0.001

Conductivity ATC range

(0.0~50.0) ℃/(32.0~122.0)°F

Conductivity Accuracy

±0.5% F.S±one digit

DO Measurement range

(0.00~20.00)mg/L

DO Accuracy

±0.30mg/L

DO saturation

(0.0~200.0)%

DO Automatic barometri pressure compensation

(0~200.0)kPa

DO Automatic temperature compensation

(0.0~50.0) ℃/(32.0~122.0)°F

DO Manual salinity compensation

0~45ppt

Temperature Measurement range

(0.0~100.0) ℃/(32.0~212.0)°F

Temperature Accuracy

±0.2℃

Data export

Flash disk/PC/Printer

Power supply

DC12V

Test kit

Meter; Glass refillable pH probe D201G; Temp. probe DTEMP-01; Glass ATC cond probe DCON201TG, K=1.0; Polarographic DO probe DDO01-2M; pH buffer: pH4.00/7.00/10.01, 50mL each; Cond solution: 84/1413/12.88mS/cm, 50mL each; Membrane refill: DDOS-01, 30mL, 1btl; Sensor caps: 3pcs/group, 1pkg; PC cable: 1pc; Probe holder DF01: 1pc; Magnetic stirrer: 1pc; Power adaptor.
