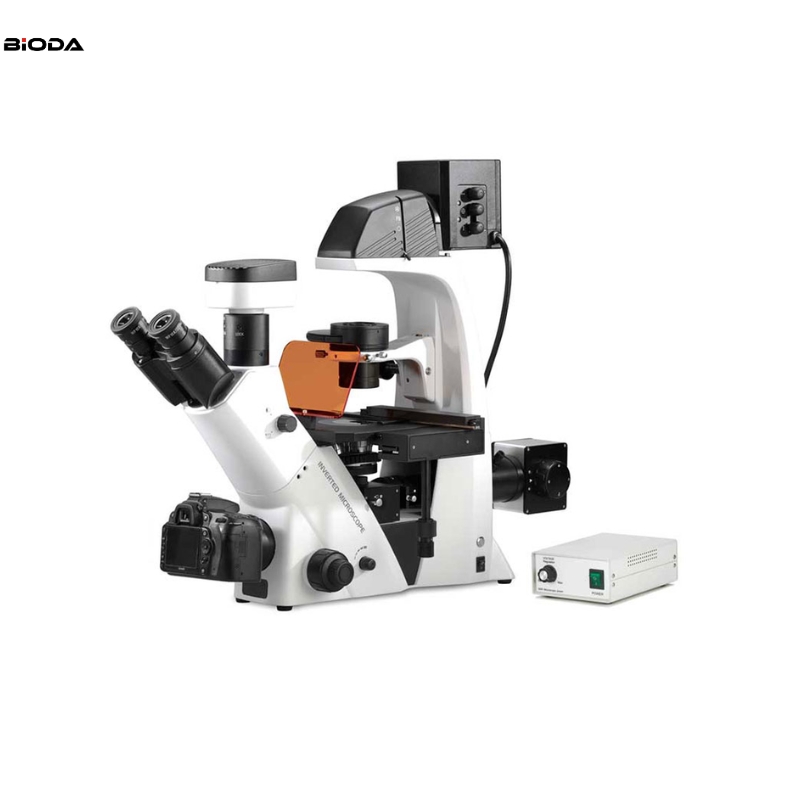

BDS500 Inverted Biological Microscope

• Convertible handle for DSLR Camera

• Coaxial coarse and fine focusing knobs

• Tension adjustment

• Special light port for SLR digital camera, 7°inclined up to be more convenient to observe the image of the SLR camera

12V/50W Kohler illumination makes the field more even and brighter.

4-hole rotating disc phase contrast condenser for standard to change bright field and phase contrast fast

LWD Infinity Plan Objectives

LWD Infinity Plan Phase Contrast Objectives

LWD Infinity Plan Objectives

Plan FL 2X

0.06

7.2

L Plan FL 4X

0.11

12.1

L Plan FL 10X

0.25

10.3

L Plan FL 20X

0.45

5.8

L Plan FL 40X

0.65

5.1

L Plan FL 2X

0.06

7.2

LWD Infinity Plan Phase Contrast Objectives

L Plan FL PHP 4X

(Both for Bright Field & Phase Contrast)

0.10

9.2

L Plan FL PHP 10X

(Both for Bright Field & Phase Contrast)

0.25

10.3

L Plan FL PHP 20X

(Both for Bright Field & Phase Contrast)

0.45

5.8

L Plan FL PHP 40X

(Both for Bright Field & Phase Contrast)

0.65

5.1

Eyepiece

WF10X／22mm (adjustable)

●●

Centering telescope

●

LWD Infinity Plan Objectives

Plan FL 2X／0.06

W.D.=7.2mm

○

L Plan FL 4X／0.11

W.D.=12.1mm

●

L Plan FL 10X／0.25

W.D.=10.3mm

○

L Plan FL 20X／0.45

W.D.=5.8mm

○

L Plan FL 40X／0.65

W.D.=5.1mm

○

LWD Infinity Plan Phase Contrast Objectives

L Plan FL PHP 4X／0.10

(Both for Bright Field & Phase Contrast)

W.D.=9.2mm

○

L Plan FL PHP 10X／0.25

(Both for Bright Field & Phase Contrast)

W.D.=10.3mm

●

L Plan FL PHP 20X／0.45

(Both for Bright Field & Phase Contrast)

W.D.=5.8mm

●

L Plan FL PHP 40X／0.65

(Both for Bright Field & Phase Contrast)

W.D.=5.1mm

●

LWD Infinity Plan

Fluor Objectives

L Plan Fluor 10x / 0.30

W.D.=14.0mm

○

 L Plan Fluor 20x / 0.45

W.D.=6.6mm

○

 L Plan Fluor 40x / 0.65

W.D.=3.9mm

○

Annular Spot

 10×/20×/ 40×

●

 4×

●

Seidentopf Trinocular Head

Inclined 45°, interpupilary distance: 48-76mm

Light distribution (both): 100: 0 （100% for eyepiece）

80:20 (80% for trinocular head, and 20% for eyepiece)

●

Seidentopf

Trinocular Head

Inclined 45°,  interpupilary distance: 48-76mm

Light distribution (both):

100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head)

○

Adaptor for Digital Photography

100% light for Photography Port

(Adaptor for CANON or NIKON SLR Digital Photography Camera)

●

Nosepiece

Quintuple

●

Mechanical Stage

Stage size: X×Y 210×241mm， Round slide size：φ110mm,

Attached mechanical stage(available for 96 holes plate, moving range X×Y：128×80mm.)

●

Culture Dish Holder

65mm+35mm

○

54mm

●

blood cell counter

○

Glass Holder

○

Universal Holder

○

Condenser

4-hole rotating disc phase contrast condenser

N.A.0.4，W.D.45mm，It can be up-down adjusting

●

Koehler Illumination

12V/50W Halogen, input voltage：100V～240V

●

5WLED，input voltage：100V～240V

○

Filter(Φ34)

Blue

●

Green,

●

Amber / Grey

○

C-mount

1 X /0.35X /0.5X /0.75X C-Mount (focus adjustable)

○

Epi fluorescence Illumination

Epi fluorescence media unit , field diaphragm，center adjustable.

○

100W mercury lamp ,5WLED(input voltage:100V～240V)

○

B, G, V, UV fluorescence filters can be chosen

○
