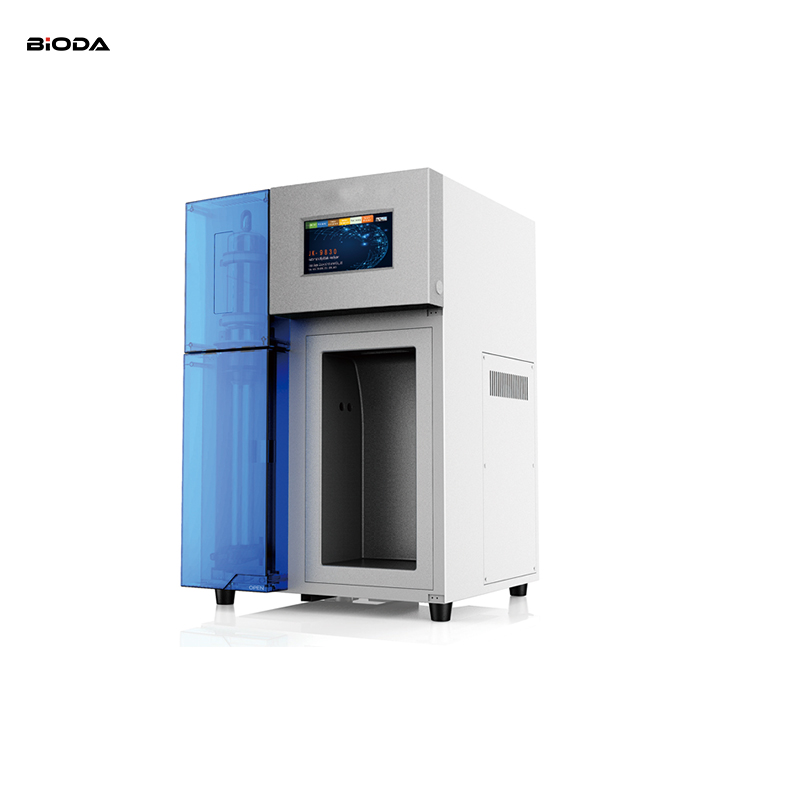

JK9830 Automatic Kjeldahl Nitrogen Analyzer

Automatic Kjeldahl Nitrogen Analyzer JK9830

Kjeldahl nitrogen determination is a classic method for determining nitrogen. Currently, the Kjeldahl method is widely used to determine soil, food, animal husbandry, agricultural products, feed and other nitrogen-containing compounds. When using this method to determine samples, three processes are required: sample digestion - distillation separation - titration analysis

JK9830 automatic Kjeldahl nitrogen determination instrument is an analysis system developed based on the classic Kjeldahl nitrogen determination method, which can automatically distill and separate samples and analyze "nitrogen element" (protein) through external related technologies. Its method and manufacturing comply with the manufacturing standard of "GB/T 33862-2017 Fully (semi) automatic Kjeldahl nitrogen determination instrument" and relevant international standards

Product features:

· JK9830 automatic Kjeldahl nitrogen analyzer has an embedded operating system with independent intellectual property rights and adopts a 7-inch color touch screen. The menu is in Chinese human-computer dialogue mode, which is easy to operate and learn

« Automatic shutdown function, the system will automatically shut down after 60 minutes of unattended operation, which is energy-saving, safe and reliable

· Operation methods, reagent preparation, precautions, maintenance and maintenance are placed on the screen for users to query and use

« The instrument has a built-in protein coefficient query table for users to read, query and participate in system calculations for users to use

« JK9830 automatic Kjeldahl nitrogen analyzer has 16M data storage capacity and can store 100,000 sample data for reference

· 99 groups of user-defined program (recipe) management system

· Multi-function interface can be connected to the refrigeration system and reagent barrel liquid level sensor

« "Nitro" samples can be measured through delayed analysis

« Metal material (304 stainless steel) steam pot: stable performance, reliable, strong pressure resistance

« The steam system provides constant pressure steam flow, good stability and safety

· Professional, high-performance pumps and valves, imported pipeline systems fully guarantee the reliability and stability of the product

Safe protection system:

· Leakage protection system ensures the safety of operators

· No reagents are added or heated in the absence of the digestive tract to prevent reagents and steam from hurting people

· The system does not work if the safety door is not closed, and the 5mm thick transparent safety door ensures personal safety

· The steam system automatically shuts down and alarms when there is a lack of water to prevent accidents

· The steam boiler automatically shuts down and alarms when it is overheated

Technical indicators:

· Analysis range: 0.1-240 mg N

· Precision (RSD): ≤0.5%

· Recovery rate (indication error): ≧99.5% (±0.5%)

· Sample analysis time: 3-5min/(cooling water temperature 18℃)

· Data storage capacity: 100,000 sets of data

· User-defined formula: 99 sets

· Communication interface: 232/network/cooling water/reagent level

· Delayed analysis: reaction time 0-2 hours

· Safe alkali addition mode: 0-999 seconds

· Automatic shutdown time: 60 minutes

· Working voltage: AC220V/50Hz

· Heating power: 2000W

· Dimensions: 500*460*710mm

· Net weight: 26Kg

Product configuration:

· 1 host

· 3 10L reagent barrels

· 1 20L waste liquid collection barrel

· 1 power cord

· 4 reagent pipelines

· 2 cooling water pipes

Optional pre-treatment equipment:

Decomposition furnace, waste gas collection device, acid-base neutralization device
