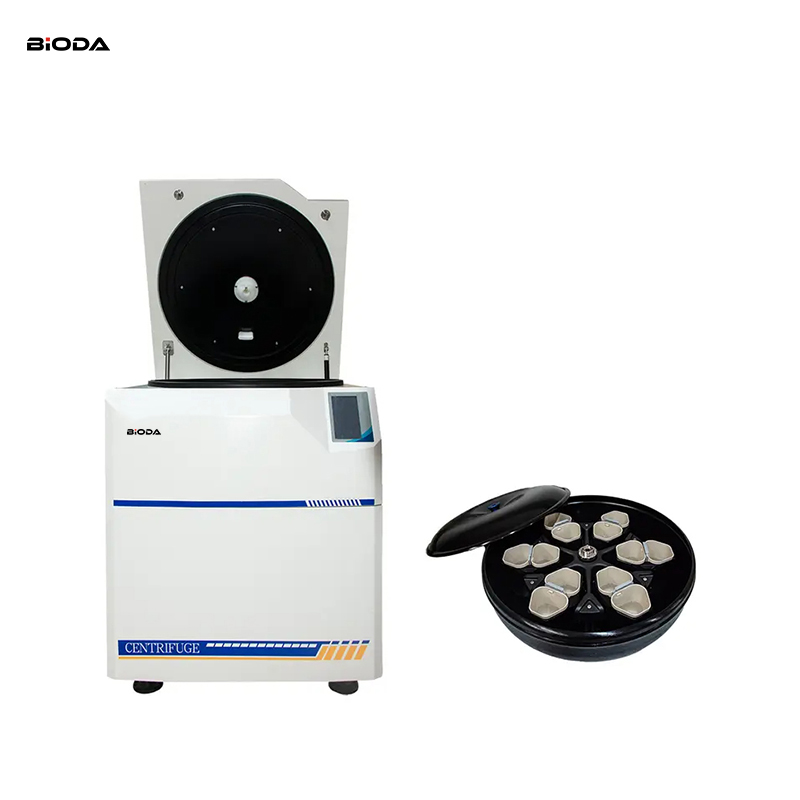

CDL7M touch screen blood bank centrifuge
CDL7M touch screen with special programs for blood bag separation, can get good performance for platelet, red cell, all parts separation of blood. 6x2x1000ml bucket suitable for blood bag separation. Also with automatical lid lock open and close function, also wind shield can open along with door open.
Features
1. Brushless frequency motor, in great torque, free maintenance, no power pollution, quick in speed up and down.
2. 7” LCD Touch screen display which indicates the program, rotor No, speed, time, RCF and temperature.
3. CFC-free refrigerant, pre-cooling function ,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
4. Microprocessor control , 100 programs in store, 10 kinds of acceleration and deceleration for your choice.
5. Over speed and imbalance protection.
6. Speed, RCF, time, temperature can be edited during running.
7. High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect sleeve, 3 tiers protection, safe and reliable.
8. Automatic door open & close, as well as anti-pinch function (Optional).
CDL7M Technical Parameter：
Max. Speed | 7000rpm |
Max. RCF | 11650×g |
Max. Capacity | 6×2400ml (12*500ml blood bag） |
Time Range | 1~99h59min59s |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 65 |
Temperature | -20 ~ 40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/380V 50HZ/60HZ |
Size (W x D x Hmm) | 940×890×1000mm |
Net Weight(Kg) | 570KG |
Special rotor for blood bag separation
Order No. | Rotor No. | Max Speed (rpm) | Max Volume (ml) | Max. RCF（×g） |
05202 | Swing Rotor | 4000 | 6×2x1000ml | 5210 |
