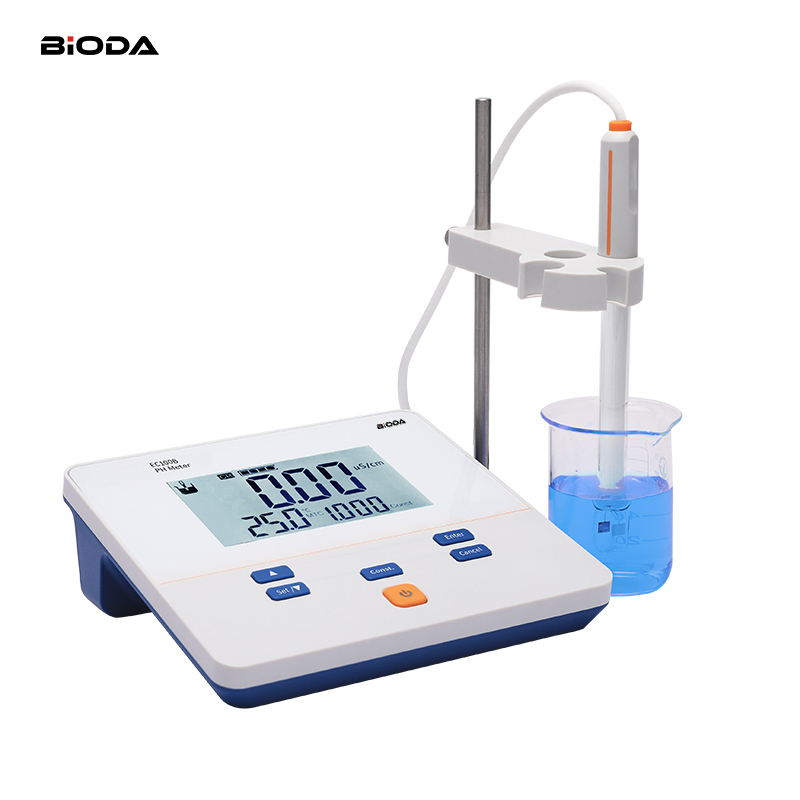

EC100B Benchtop Conductivity Meter
EC100B Benchtop Conductivity Meter
GENERAL FEATURES
² LCD display screen, 6.0 inches.
² Reset feature automatically resumes all settings back to factory default options.
² IP54 waterproof.
² Cell constant is settable.
² Manual temperature compensation ensures accurate results.
PRODUCT SPECIFICATIONS
Model | EC100B | |
Parameters | EC | |
Conductivity | Range | 0.00 μS/cm to 100 mS/cm |
Resolution | 0.01 μS/cm minimum, various with range selection | |
Accuracy | ±1.5% FS | |
Reference Temperature | 25 ºC | |
Measurement | Reading Mode | Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | MTC | |
Inputs | Conductivity Probe | 5-pin aviation connector |
Display options | Backlight | Yes |
Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
IP Rating | IP54 | |
General | Power | AC Adapter, 100-240V AC input, DC9V output |
Dimensions | 200×160×63 mm | |
Weight | 600g (1.32 lb) | |
